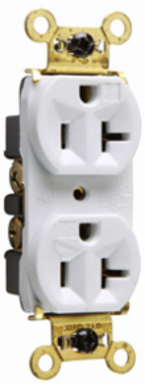

Pass & Seymour WR5362W Weather-Resistant Heavy Duty Duplex Receptacle 20A 125V, White
- MPN: WR5362W
- UPC: 785007242508
- PPN: P-S-WR5362W
- UNSPSC: 39121406
CAD
$58.92
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Weather-Resistant Heavy Duty Duplex Receptacle 20A 125V, White
Features
- Auto-ground clip assures positive ground.
- WR marking on face as required by UL Standard.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- UV-resistant nylon face for longer life under adverse environmental conditions.
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.635 in |
| Color | White |
| Amperage | 20.0 A |
| Number of Poles | Double Pole |
| Special Features | Auto-ground clip assures positive ground. WR marking on face as required by UL Standard. Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations. Strap tabs wrap around face to prevent strap from separating from face and back body. Tri-drive brass terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility. Heavy-duty, brass strap for added strength and ground conductivity. UV-resistant nylon face for longer life under adverse environmental conditions. Two drive screws anchor strap to back body and face where abrupt removal torque is strongest. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. .032 inch thick brass triple-wipe power contacts for lasting retention. |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Features | Weatherproof; Brass Mounting Strap |
| Operating Temperature Min | -40.0 °C |
| NEMA Configuration Code | 5-20R |
| Outlet Type | Weather-Resistant; Straight Blade |
| Number of Receptacles | 2.0 |
| Operating Temperature Max | 60.0 °C |
| Depth | 0.78 in |
|---|---|
| Width | 1.322 in |
| Product Line | Pass & Seymour |
| Application Sector | Commercial |
| Environmental Conditions | Flammability: UL94 V2 |
| Dielectric Strength | Withstands 2000V minimum |
| Standard | UL498; CSA C22.2 No. 42; FEDSPEC |
| Operating Temperature | -40°-60°C |
| Wall Plate Included | No |
| Connection Location | Back and Side |
| Indoor/Outdoor | Outdoor |
| Voltage | 125.0 V |
| Wire Connection Type | Internal Pressure Plates; Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
