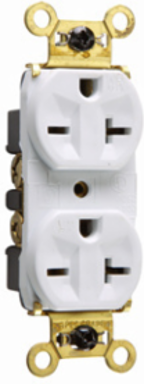

Pass & Seymour WR5862W Weather-Resistant Heavy-Duty Receptacle 20A 250V, 0.78 Inch Depth
- MPN: WR5862W
- UPC: 785007243154
- PPN: P-S-WR5862W
- UNSPSC: 39121406
CAD
$67.80
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Weather-Resistant Heavy-Duty Receptacle 20A 250V, 0.78 Inch Depth
Features
- Auto-ground clip assures positive ground.
- WR marking on face as required by UL Standard.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- UV-resistant nylon face for longer life under adverse environmental conditions.
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.635 in |
| Color | White |
| Amperage | 20.0 A |
| Number of Poles | Double Pole |
| Special Features | Weather resistant, tamper resistant\ |
| Standard | UL 498; FEDSPEC |
| Operating Temperature Min | -40.0 °C |
| Connection Location | Back and Side |
| NEMA Configuration Code | 6-20R |
| Indoor/Outdoor | Outdoor |
| Number of Receptacles | 2.0 |
| Features | Brass Mounting Strap |
| Operating Temperature Max | 60.0 °C |
| Depth | 0.78 in |
|---|---|
| Width | 1.322 in |
| Product Line | Pass & Seymour |
| Application Sector | Commercial |
| Phase | Three |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Warranty Type | 1-Year Limited Warranty |
| Voltage | 250.0 V |
| Outlet Type | Weather-Resistant |
| Wire Connection Type | Screw Terminals |
| Operating Temperature | -40°-60°C |
| Wall Plate Included | No |
