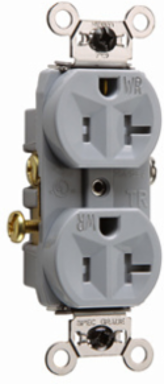

Pass & Seymour WR20TRGRY 20A 125V Commercial Grade Weather-Resistant Duplex Receptacle, Gray, 2.635 Inch Height, 1.322 Inch Width
- MPN: WR20TRGRY
- UPC: 785007243222
- PPN: P-S-WR20TRGRY
CAD
$18.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Commercial Grade Weather-Resistant Duplex Receptacle, Gray, 2.635 Inch Height, 1.322 Inch Width
Features
- Auto-ground clip assures positive ground.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Width
- 1.322 in
- Standard
- UL 498
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Outlet Type
- Tamper-Resistant
- Connection Location
- Side Only
- NEMA Configuration Code
- 5-20R
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Special Features
- Weather resistant, tamper resistant\
- Product Line
- Pass & Seymour
PhaseThree
Amperage20.0 A
Country of OriginMexico
Voltage125.0 V
FeaturesWeatherproof
Indoor/OutdoorOutdoor
Is Tamper-ResistantYes
Number of PolesDouble Pole
Application SectorCommercial
FeaturesBrass Mounting Strap
Outlet TypeWeather-Resistant
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
ColorGray
