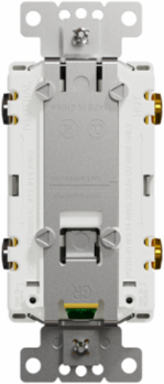

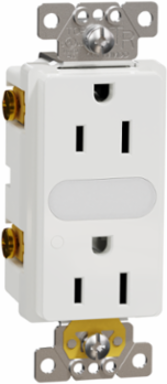

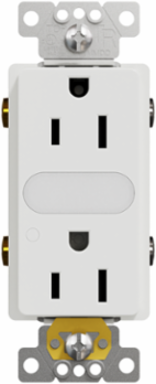

Schneider Electric SQR57101WH X Series 15A 125V Tamper Resistant Duplex Receptacle, White, 1 Gang, Light Indicator

MPN: SQR57101WH
UPC: 785901549178
PPN: SCH-SQR57101WH
UNSPSC: 39121406

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$15.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

X Series 15A 125V Tamper Resistant Duplex Receptacle, White, 1 Gang, Light Indicator

Features

(1) 90A - 110A hold-down clip
Part of Schneider Electric’s grid to plug solutions combining control and monitoring of your home's electrical system.
Supports single-pole and 3-way (multi-way) wiring scenarios for flexible installation.
Cost effective 3-way expansion using a single-pole switch on the far end connected to the traveler and neutral wires.
Simplified but secure QR Code based installation process.
Wi-Fi Certified ensures set-up with all certified routers and mesh networks and supports latest security protocols.
Schedules are stored in the device and will execute even if the internet is down.
Works with Wiser Energy by Square D.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Depth	35 mm

Physical Attributes

Color	White

Complementary Attributes

Ie Rated Operational Current Ac	15 A

Ue Rated Operational Voltage	125 V

Important Information Attributes

Connections Terminals	phase and neutral 4 screw terminal 14 AWG...12 AWG) copper, phase and neutral 4 push-in termination 14 AWG), solid copperearth 1 screw terminal copper
Local Publishable Date	2026-08-19
Pre Comm Date	2020-12-18
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Persona Type Names	Contractor
Tier	1
Function Option	Standard
Market Segmentation	Residential
Aesthetic Name	X Series
Device Application	power supply
Earth Circuit	self earthing
Light Source	LED
Material	plastic: strapmetal: fixing frame
Network Frequency	60 Hz
Number Of Gangs	1 gang
Outlet Poles Configuration	2P + E
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	1 piece
Returnability	Yes
Socket Number	2
Sustainable Packaging	Yes
Light Source Color	warm white 2700 K
Width Nominal	42 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	24

Local Data Status	Publishable
Pre Comm Announcement Date	2020-10-30
Return Indicator	Y
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Persona Type Ids	LC
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Body Type	decorator
Device Composition	light indicator
Energy Efficiency Optimized	False
Market Segment	residential
Mounting Mode	by screws
Network Type	AC
Number Of Modules	1
Outlet Standard	NEMA
Product Or Component Type	socket-outlet
Range	Square D X Series
Socket Additional Information	tamper resistant
Surface Finish	Matte
Targeted Channel	distributor
Height Nominal	103 mm
Certificate Agency	cULus
Customs Code	8536698000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Reach Regulation	Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
