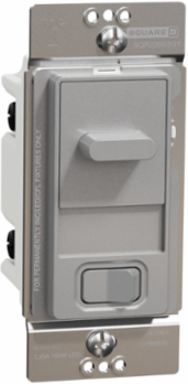

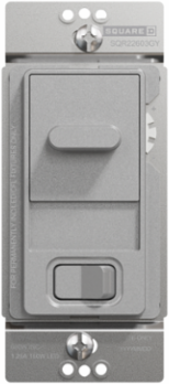

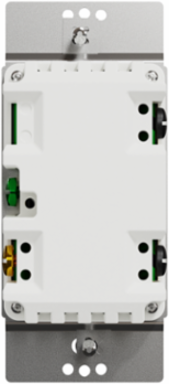

Square D SQR22603GY X Series 15A 600W Matte Gray Slide Dimmer, Flush Mount, 120V

  • MPN: SQR22603GY
  • UPC: 785901534945
  • PPN: SCH-SQR22603GY

CAD

$35.43

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Description

X Series residential wiring devices slide dimmer switch offers an array of new features, such as flush mounting, easy installation, and connectivity. The rated operational voltage of this dimmer is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. The dimmer is made of metal and plastic making it resistant and durable. This dimmer has a grey frame. It features protective painted surface treatment. This dimmer benefits from an elegant matt finishing, constituting an added value for your interior design. This dimmer has a width of 45 mm, a height of 103 mm and a depth of 50 mm. By offering a solution compatible with several types of installations, this dimmer is cUlus certified.

Documentation & Downloads

Specifications

Key Specifications

Actuator
slide
Colour Tint
grey
Range
Square D X Series
Device Application
control
Aesthetic NameX Series
Product Or Component Typedimmer
Device Presentationmechanism with fixing frame

Complementary

Network Frequency
60 Hz
Device Mounting
flush
Network Type
AC
Connections - Terminals
phase and neutral 4 screw terminal copper || earth 1 screw terminal copper
[Ie] Rated Operational Current Ac
15 A
Material
plastic: strap || metal: fixing frame
Width
45 mm
Load Type
halogen 5...500 W || incandescent 5...500 W || dimmable LED 0...150 W
Number Of Poles
1
Height103 mm
Number Of Gangs1 gang
Surface Finishmatt
Mounting Modeby screws
Number Of Ways3
Quantity Per Set1 piece
Depth50 mm
[Ue] Rated Operational Voltage120 V

Environment

Product Certifications
cULus
StandardsUL 1472 || NEMA SSL 7A

Contractual warranty

Warranty
2 years

Offer Sustainability

Rohs Exemption Information
Yes
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Eu Rohs Directive
Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
