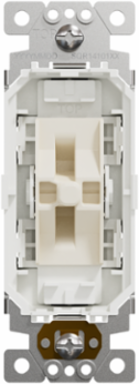

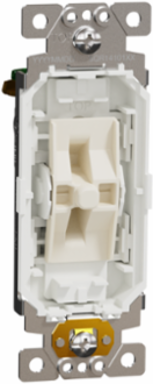

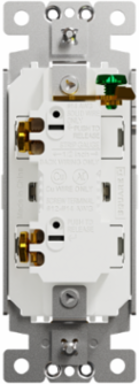

Square D SQR14101XX X Series 15A Single Pole Flush Switch Module, 120V/277V
- MPN: SQR14101XX
- UPC: 785901534563
- PPN: SCH-SQR14101XX
CAD
$4.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
X Series residential wiring devices switch offers an array of new features, such as flush mounting, easy installation, and connectivity. The rated operational voltage of this switch is 120V and 277V. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, the connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate and the cover plates of the XD series, so that the personalization of your interior design with many styles of décor is possible. This switch has a width of 37 mm, a height of 103 mm and a depth of 35 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. By being mercury free and heavy metal free, this switch is cUlus certified.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Name
- X Series
- Range
- Square D X Series
- Device Application
- control
Product Or Component Typeswitch
Device Presentationmechanism with fixing frame
Complementary
- Network Frequency
- 60 Hz
- Number Of Modules
- 1
- Number Of Gangs
- 1 gang
- Surface Finish
- matt
- Targeted Channel
- distributor
- [Ie] Rated Operational Current Ac
- 15 A
- Material
- plastic: strap || metal: fixing frame
- Market Segment
- residential
- Number Of Poles
- 1
Actuatordolly
Device Mountingflush
Network TypeAC
Connections - Terminalsphase and neutral 2 screw terminal AWG 14...AWG 12) copper || phase and neutral 2 push-in termination AWG 14), solid copper || earth 1 screw terminal copper
Mounting Modeby screws
Earth Circuitself earthing
Switch Function1-way
[Ue] Rated Operational Voltage120 V || 277 V
Environment
- Product Certifications
- cULus
StandardsUL 20
Contractual warranty
- Warranty
- 2 years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011019EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
