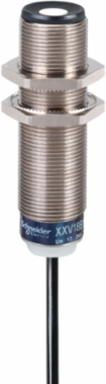

Telemecanique Sensors XXV18B1NAL2 Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, NPN NO, cable 2 m
- MPN: XXV18B1NAL2
- PPN: TES-XXV18B1NAL2
CAD
$131.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, NPN NO, cable 2 m
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.003-0.05 m
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- cable, 2 m
- [Sn] Nominal Sensing Distance
- 0.05-0.05 m fixed
Discrete Output TypeNPN
Type Of Output Signaldiscrete
Sensor NameXXV
Materialmetal
Ip Degree Of ProtectionIP67 IEC 60529
Beam Angle10 °
Sensor Typeultrasonic sensor
Sensor Designcylindrical M18
Complementary
- Repeat Accuracy
- 1.5 %
- Maximum Switching Current
- 200 mA overload and short-circuit protection
- Switching Frequency
- <= 80 Hz
- Maximum Voltage Drop
- 2 V
- Transmission Frequency
- 360 kHz
- Threaded Length
- 51 mm
- Blind Zone
- 0-3 mm
- Current Consumption
- 15 mA
- Deviation Angle From 90° Of Object To Be Detected
- -8-8 °
- Maximum Delay Recovery
- 4 ms
- Supply Voltage Limits
- 10-36 V DC
- Width
- 18 mm
- Depth
- 65 mm
Height18 mm
Minimum Size Of Detected Objectcylinder diameter 2 mm 0.02 m
Maximum Delay Response4 ms
Status Ledoutput state 1 LED yellow)
[Sa] Assured Operating Distance0.003-0.05 m
MarkingCE
Net Weight0.11 kg
Maximum Differential Travel3 mm
Thread TypeM18 x 1
Maximum Delay First Up5 ms
Enclosure Materialbrass
Front Materialepoxy
Environment
- Product Certifications
- cULus
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-60 °C
StandardsIEC 60947-5-2
Shock Resistance50 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111225EN
