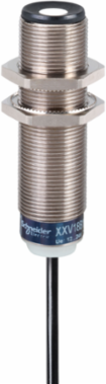

Telemecanique Sensors XXV18B1PAL2 Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, PNP NO, cable 2 m

This product is part of the XX range, an offer of ultrasonic sensors. This ultrasonic sensor has a cylindrical M18 design with diffuse detection system. It supports 0.05m nominal sensing distance and 1 NO PNP discrete output. The ultrasonic sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and current consumption of 15mA. It is furnished with 2m cable connector for electrical connection. It is an IP67 rated product. The enclosure is made of brass with epoxy front. Its dimensions are 18mm (width) x 65mm (depth) x 18mm (height). It weighs 0.11kg. This product is certified by CE and CULus. It meets IEC 60947-5-2 standards. XX Ultrasonic Sensors operate in diffuse, reflex, and thru beam modes. This range of sensors even includes long distance detection models. The XX ultrasonic sensors perform contactless, reliable, and high performance detection regardless of the target's shape, texture, color, or transparency.
