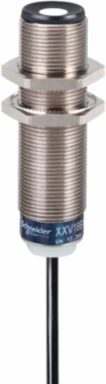

Telemecanique Sensors XXV18B1PAL5 Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, PNP NO, cable 5 m
- MPN: XXV18B1PAL5
- PPN: TES-XXV18B1PAL5
- UNSPSC: 39122230
CAD
$135.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, PNP NO, cable 5 m
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.003-0.05 m |
| Wiring Technique | 3-wire |
| Series Name | general purpose |
| Detection System | diffuse |
| Electrical Connection | cable, 5 m |
| [Sn] Nominal Sensing Distance | 0.05-0.05 m fixed |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XXV |
| Material | metal |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Beam Angle | 10 ° |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M18 |
Complementary
| Repeat Accuracy | 1.5 % |
|---|---|
| Maximum Switching Current | 200 mA overload and short-circuit protection |
| Switching Frequency | <= 80 Hz |
| Maximum Voltage Drop | 2 V |
| Transmission Frequency | 360 kHz |
| Threaded Length | 51 mm |
| Blind Zone | 0-3 mm |
| Current Consumption | 15 mA |
| Deviation Angle From 90° Of Object To Be Detected | -8-8 ° |
| Maximum Delay Recovery | 4 ms |
| Supply Voltage Limits | 10-36 V DC |
| Width | 18 mm |
| Depth | 65 mm |
| Height | 18 mm |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 2 mm 0.02 m |
| Maximum Delay Response | 4 ms |
| Status Led | output state 1 LED yellow) |
| [Sa] Assured Operating Distance | 0.003-0.05 m |
| Marking | CE |
| Net Weight | 0.2 kg |
| Maximum Differential Travel | 3 mm |
| Thread Type | M18 x 1 |
| Maximum Delay First Up | 5 ms |
| Enclosure Material | brass |
| Front Material | epoxy |
Environment
| Product Certifications | cULus |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 50 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
|---|
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|
