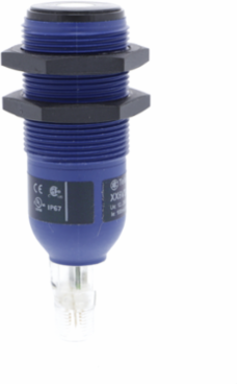

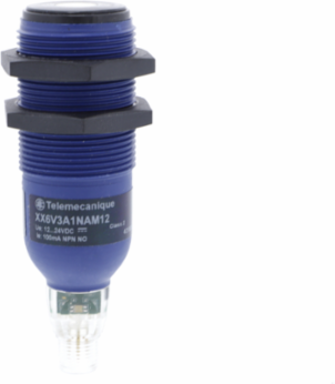

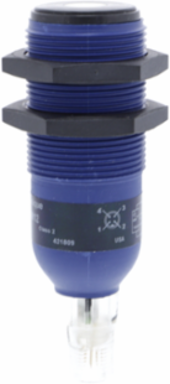

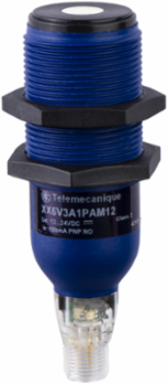

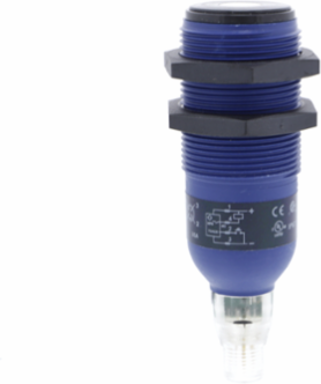

Telemecanique Sensors XX6V3A1PAM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 1 m, NO, M12 connector
- MPN: XX6V3A1PAM12
- UPC: 785901637028
- PPN: TES-XX6V3A1PAM12
CAD
$440.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This cylindrical (diffuse system) ultrasonic sensor has a VALOX case. It has a supply voltage of 12V to 24V DC. This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in hot environments up to +70°C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.1-1 m |
| Wiring Technique | 3-wire |
| Series Name | general purpose |
| Detection System | diffuse |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 1-1 m adjustable with remote teach push-button |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XX6 |
| Material | plastic |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Beam Angle | 7 ° |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M30 |
Complementary
| Repeat Accuracy | 0.9 % |
|---|---|
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Switching Frequency | <= 70 Hz |
| Maximum Voltage Drop | 1.5 V |
| Transmission Frequency | 180 kHz |
| Threaded Length | 37 mm |
| Blind Zone | 0-100 mm |
| Current Consumption | 60 mA |
| Deviation Angle From 90° Of Object To Be Detected | -7-7 ° |
| Maximum Delay Recovery | 75 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 30 mm |
| Height | 96 mm |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 50.8 mm 1 m |
| Maximum Delay Response | 15 ms |
| Status Led | setting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow) |
| [Sa] Assured Operating Distance | 0.1-1 m teach mode) |
| Marking | CE |
| Net Weight | 0.09 kg |
| Maximum Differential Travel | 2.5 mm |
| Thread Type | M30 x 1.5 |
| Maximum Delay First Up | 75 ms |
| Enclosure Material | valox |
| Front Material | epoxy |
Environment
| Product Certifications | UL || cCSAus |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | 0-70 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI111225EN |
