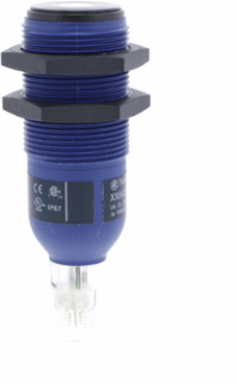

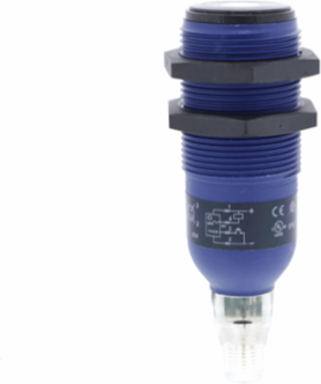

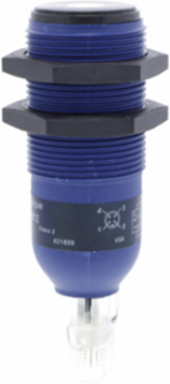

Telemecanique Sensors XX9V3A1C2M12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 1 m, 4...20 mA, M12 connector
- MPN: XX9V3A1C2M12
- PPN: TES-XX9V3A1C2M12
CAD
$537.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This cylindrical ultrasonic sensor has a VALOX case. It has a supply voltage of 15V to 24V DC and an analog ouput of 4mA to 20mA. This general purpose parallelepipedic ultrasonic sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in hot environments up to +70°C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 15...24 V DC reverse polarity protection |
|---|---|
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.1-1 m |
| Wiring Technique | 4-wire |
| Series Name | general purpose |
| Detection System | diffuse |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 1-1 m adjustable with remote teach push-button |
| Type Of Output Signal | analogue |
|---|---|
| Sensor Name | XX9 |
| Material | plastic |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Beam Angle | 7 ° |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M30 |
| Analogue Output Function | 4...20 mA |
Complementary
| Maximum Switching Capacity | 350 Ohm overload and short-circuit protection |
|---|---|
| Height | 96 mm |
| Maximum Delay Response | 250 ms |
| Setting-Up | slope selection using teach button |
| [Sa] Assured Operating Distance | 0.1-1 m teach mode) |
| Marking | CE |
| Net Weight | 0.09 kg |
| Deviation Angle From 90° Of Object To Be Detected | -5-5 ° |
| Maximum Delay Recovery | 250 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 30 mm |
| Repeat Accuracy | 0.9 % |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 50.8 mm 1 m |
| Status Led | setting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow) |
| Transmission Frequency | 180 kHz |
| Threaded Length | 37 mm |
| Blind Zone | 0-100 mm |
| Current Consumption | 60 mA |
| Thread Type | M30 x 1.5 |
| Maximum Delay First Up | 1200 ms |
| Enclosure Material | valox |
| Front Material | epoxy |
Environment
| Product Certifications | cCSAus || UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | 0-70 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Circularity Profile | ENVEOLI111225EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
