Telemecanique Sensors XXV18B1PAM12 Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, PNP NO, M12
- MPN: XXV18B1PAM12
- UPC: 785901774389
- PPN: TES-XXV18B1PAM12
CAD
$131.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

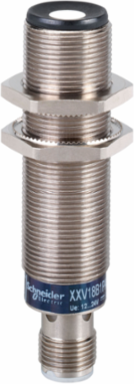

This cylindrical (diffuse system) ultrasonic sensor has a nickel plate brass case. It has a supply voltage of 12V to 24V DC. This general purpose parallelepipedic ultrasonic sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. IP67 protection makes this product ready for the harshest environments. It can operate in hot environments up to +60°C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.003-0.05 m |
| Wiring Technique | 3-wire |
| Series Name | general purpose |
| Detection System | diffuse |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 0.05-0.05 m fixed |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XXV |
| Material | metal |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Beam Angle | 10 ° |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M18 |
Complementary
| Repeat Accuracy | 1.5 % |
|---|---|
| Maximum Switching Current | 200 mA overload and short-circuit protection |
| Switching Frequency | <= 80 Hz |
| Maximum Voltage Drop | 2 V |
| Transmission Frequency | 360 kHz |
| Threaded Length | 51 mm |
| Blind Zone | 0-3 mm |
| Current Consumption | 15 mA |
| Deviation Angle From 90° Of Object To Be Detected | -8-8 ° |
| Maximum Delay Recovery | 4 ms |
| Supply Voltage Limits | 10-36 V DC |
| Width | 18 mm |
| Depth | 75 mm |
| Height | 18 mm |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 2 mm 0.02 m |
| Maximum Delay Response | 4 ms |
| Status Led | output state 1 LED yellow) |
| [Sa] Assured Operating Distance | 0.003-0.05 m |
| Marking | CE |
| Net Weight | 0.05 kg |
| Maximum Differential Travel | 3 mm |
| Thread Type | M18 x 1 |
| Maximum Delay First Up | 5 ms |
| Enclosure Material | brass |
| Front Material | epoxy |
Environment
| Product Certifications | cULus |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 50 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI111225EN |
