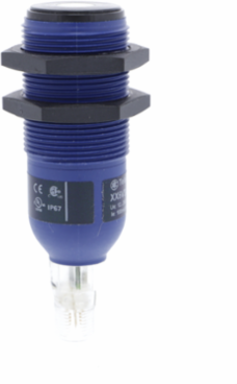

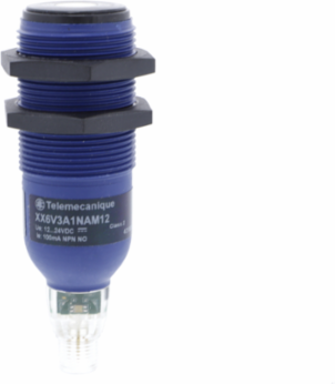

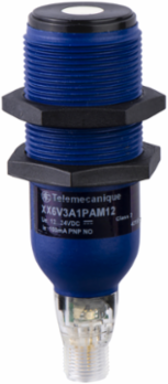

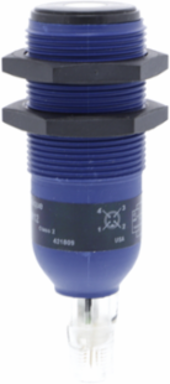

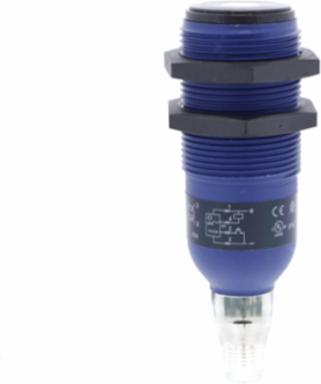

Telemecanique Sensors XX9V3A1F1M12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 1 m, 0...10 V, M12 connector
- MPN: XX9V3A1F1M12
- PPN: TES-XX9V3A1F1M12
CAD
$632.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This cylindrical ultrasonic sensor has a VALOX case. It has a supply voltage of 15V to 24V DC and an analog ouput of 0V to 10V. This general purpose parallelepipedic ultrasonic sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in hot environments up to +70°C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 15...24 V DC reverse polarity protection
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.1-1 m
- Wiring Technique
- 4-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- male connector M12 4 pins
- [Sn] Nominal Sensing Distance
- 1-1 m adjustable with remote teach push-button
Type Of Output Signalanalogue
Sensor NameXX9
Materialplastic
Ip Degree Of ProtectionIP67 IEC 60529
Beam Angle7 °
Sensor Typeultrasonic sensor
Sensor Designcylindrical M30
Analogue Output Function0...10 V
Complementary
- Maximum Switching Capacity
- 2 kOhm overload and short-circuit protection
- Height
- 96 mm
- Maximum Delay Response
- 250 ms
- Setting-Up
- slope selection using teach button
- [Sa] Assured Operating Distance
- 0.1-1 m teach mode)
- Marking
- CE
- Net Weight
- 0.09 kg
- Deviation Angle From 90° Of Object To Be Detected
- -5-5 °
- Maximum Delay Recovery
- 250 ms
- Supply Voltage Limits
- 10-28 V DC
- Width
- 30 mm
Repeat Accuracy0.9 %
Minimum Size Of Detected Objectcylinder diameter 50.8 mm 1 m
Status Ledsetting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow)
Transmission Frequency180 kHz
Threaded Length37 mm
Blind Zone0-100 mm
Current Consumption60 mA
Thread TypeM30 x 1.5
Maximum Delay First Up1200 ms
Enclosure Materialvalox
Front Materialepoxy
Environment
- Product Certifications
- cCSAus || UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-70 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
