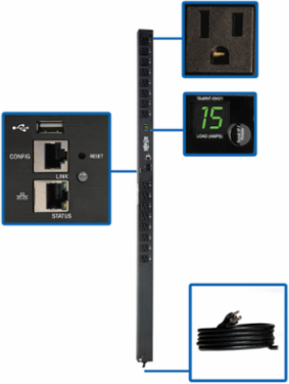

Tripp Lite PDUMV15NETLX 1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P, 0U, TAA

1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P, 0U, TAA - https://media.province-electric.com/tripplite/2020q1/21f37518b5d57ad356d2f06deb290594c7acf011-medium.png

1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P, 0U, TAA

Tripp Lite PDUMV15NETLX 1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P, 0U, TAA

MPN: PDUMV15NETLX
UPC: 037332205193
PPN: TRP-PDUMV15NETLX

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1634.03/ EA

Qty:

Loading add to cart quantity...

Description

1.4kW vertical PDU distributes, monitors and manages single-phase power in an IT environment with no Java required. Built-in network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

1.4kW 120V single-phase switched 0U PDU

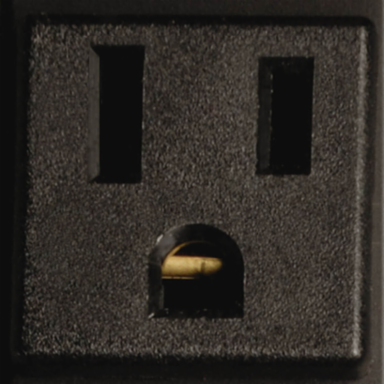

16 individually controllable NEMA 5-15R outlets
Built-in LX Platform interface for 24/7 remote access
Auto Probe for Autonomous Device Management

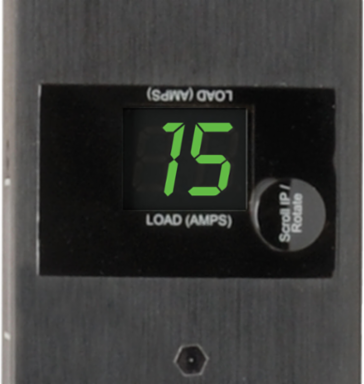

Digital ammeter for on-site load monitoring in real time

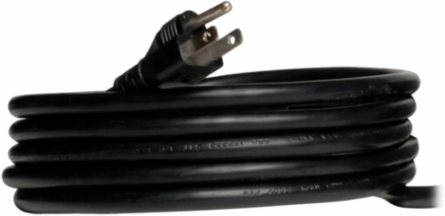

NEMA 5-15P input with 10 ft. AC power cord
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year limited warranty
Distributes Network-Grade AC Power
16 Switched NEMA 5-15R Outlets Distribute AC Power
Digital Ammeter
Built-In LX Platform Interface
Broad Communications Compatibility
Reduce Service Calls with Auto Probe Autonomous Device Management

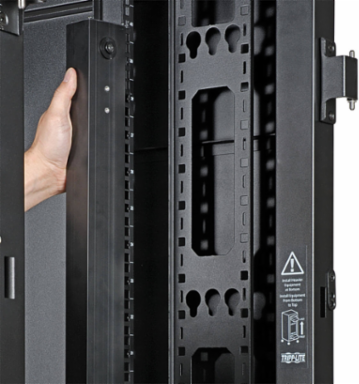

Easy 0U Installation in EIA-Standard 19 in. Racks
TAA-Compliant

Specifications

Certifications

Certifications: Tested to UL60950-1: 2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), FCC Class A Part 15 (Emissions), NOM (Mexico), RoHS Compliant, TAA Compliant

Physical

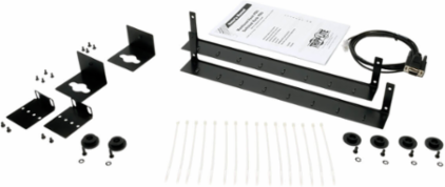

Form Factors Supported: 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks

Shipping Dimensions (hwd / in.): 4.00 x 6.00 x 51.75

Unit Dimensions (hwd / in.): 49 x 2.19 x 2.65

PDU Form FactorVertical (0U)

Shipping Weight (lbs.)11.00

Unit Weight (lbs.)7

User Interface, Alerts & Controls

Front Panel LCD Display: Digital LED display reports total PDU output current in amps

Switches: Pushbutton control supports 180 degree Display Rotation and Scroll IP address functions; LX Platform Interface: Recessed rest switch for interface reboot and factory reset

Front Panel LEDs16 LEDs display power on-off status for each output receptacle; Network Link/Activity Status LED (Yellow), Network Speed LED (Green); LX Platform status LED (Green)

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 15

PDU Plug Type: NEMA 5-15P

Input Cord Length (ft.): 10

Recommended Electrical Service15A 120V

Maximum Input Amps DetailsAgency de-rated to 12A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (16) 5-15R

Overload Protection: n/a

Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet

Output Nominal Voltage100; 120; 127

Customized Load Management Receptacles16 individually switched output receptacles

Communications

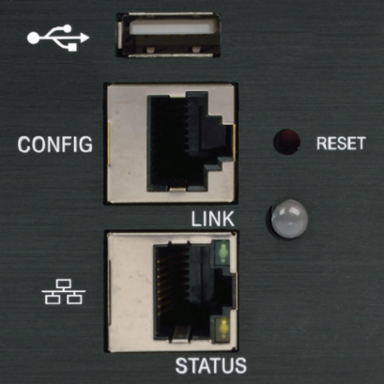

Network Monitoring Port: RJ45 Network port, RJ45 Console port; USB A supports a variety of Envirosense2 environmental monitoring and control options. See Accessories>Management Hardware section for more information about these modules.

SNMP CompatibilityPre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, Telnet, SSH, CLI and SNMP management systems
