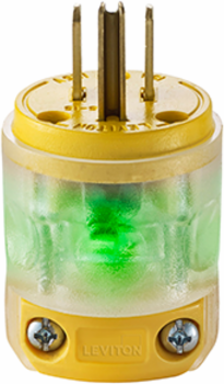

Leviton 515PV-LIT 15 Amp 125 Volt NEMA 5-15P Lighted Rubber Plug, 2-Pole, 3-Wire

MPN: 515PV-LIT
UPC: 078477674857
PPN: LEV-515PV-LIT

$9.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Plug, Straight Blade - Lighted

Features

Ideal for replacement of plugs on tools, appliances and extension cords
Green light indicates power is flowing through to the cord
Accepts AWG SJ 16/3
NEMA 5-15P
cULus, NOM
Rugged PVC plug and connector (515PV/515CV) resists moisture and chemicals
Unique dimpled body provides a secure hinge grip
Built-in cord grip adjusts automatically for use with 18-12 AWG.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	True

Standards and Certifications

ANSI	C-73
NEMA	WD-6
UL498	File E13393

CSA C22.2 No. 42	File LR-406
NOM	057
Warranty	2-Year Limited

Material Specifications

Assembly Screws	Steel, Zinc Plated
Body Material	PVC

Blades/Contacts	Brass

Mechanical Specifications

Product ID	Ratings and NEMA I.D. permanently marked on device
Terminal ID	Brass-Hot, Green-Ground, Silver-Neutral

Terminal Accom.	18-12 AWG

Product Features

Color	Yellow/Transparent
Feature	Power Indication

Cord Range	.245 - .655

Environmental Specifications

Flammability	Rated V-2 per UL 94

Operating Temperature	-40°C to 60°C

Electrical Specifications

Amperage	15 A
Grounding	Grounding
Temperature Rise	Max 30C after 50 cycles OL at 150 percent rated current
Wire	3

Dielectric Voltage	Withstands 2000V per UL498
Pole	2
Voltage	125 VAC

15 Amp 125 Volt NEMA 5-15P Lighted Rubber Plug, 2-Pole, 3-Wire
