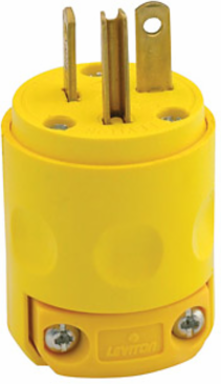

Leviton 520PV 20 Amp 125 Volt NEMA 5-20P 2-Pole 3-Wire Grounding Plug Yellow
- MPN: 520PV
- UPC: 078477841884
- PPN: LEV-520PV
CAD
$7.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 125 Volt, NEMA 5-20P, 2-Pole, 3-Wire Grounding Plug, Straight Blade - Yellow
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL498 | File E13393 |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| Warranty | 2-Year Limited |
Material Specifications
| Assembly Screws | Steel, Zinc Plated |
|---|---|
| Body Material | PVC |
| Blades/Contacts | Brass |
|---|---|
| Color | Yellow |
Mechanical Specifications
| Cord Range | .245 - .655 |
|---|---|
| Terminal Accom. | 18-12 AWG |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Wire | 3 |
