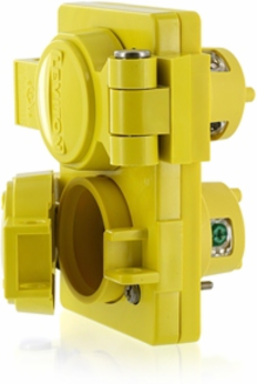

Leviton 80W49-D Wetguard Watertight Locking Duplex Outlet

Wetguard Watertight Locking Duplex Outlet
Wetguard Watertight Locking Duplex Outlet
  • MPN: 80W49-D
  • UPC: 078477518519
  • PPN: LEV-80W49-D

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$210.88/ EA

Description

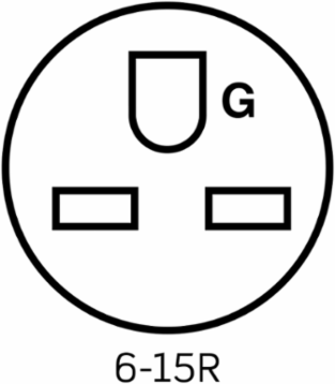

15 Amp, 250 Volt, NEMA 6-15, 2-Pole, 3-Wire, Straight Blade Duplex Outlet, Industrial Grade, Grounding, Wetguard - YELLOW

Features

  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
  • ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
  • MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
  • DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL
498
CSAC22.2 No. 42
NOM057
WarrantyLimited Lifetime Warranty

Material Specifications

Blades/Contacts, Terminal Clamps
Electroless Nickel-coated Brass
Cover/Lid
Valox PBT
Terminal Screws
Electroless Nickel-coated Brass
Wiring Module
Nylon
Cover GasketSantoprene TPV
Mounting and Assembly ScrewsStainless steel, non-magnetic
Torsion Spring Mechanism (Flip Lids)Stainless Steel
Wiring Module Mounting CupValox PBT

Mechanical Specifications

Product ID
Ratings and NEMA I.D. permanently marked on device
Terminal Accom.#18 AWG to # 10 AWG

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Brand
Wetguard
Device Type
Straight Blade Outlet
ColorYellow

Environmental Specifications

Enclosure Rating
NEMA 4, 4X, 12 IEC IP66
Flammability
Rated V-2 per UL 94 (wiring module)
EnvironmentWet
Operating Temperature-40°C to 60°C

Electrical Specifications

Amperage
15 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Voltage
250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
