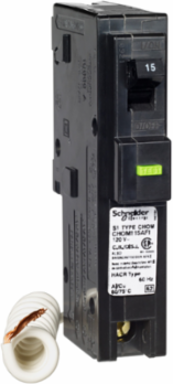

Schneider Electric CHOM115AFI HOMELINE CIRCUIT BREAKER 120V 15A 1P ARC FAULT INTERRUPTER
- MPN: CHOM115AFI
- UPC: 785901649861
- PPN: SCH-CHOM115AFI
CAD
$64.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The circuit breaker is rated for Heating, Air Conditioning, and Refrigeration (HACR) applications This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240VAC. CHOM breakers provide 10kA breaking capacity. It also includes arc fault interrupt already installed. It provides a standard circuit protection and is HACR rated. CHOM Homeline miniature circuit breakers are CSA certified. HOM Homeline miniature circuit breakers are UL and CSA Listed.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States, ZZ
Complementary Attributes
- Line Rated Current
- 15 A
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1406034
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Electrical Connection
- screw clamp terminals
- Number Of Poles
- 1P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Homeline
- Sustainable Packaging
- No
- Certificate Agency
- CSA
- Short-circuit Current
- 10 kA
- Nbr. Of Units In Pkg.
- 1
- Warranty (In Months)
- 18
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1945
China Rohs In ScopeNo
Awg Gauge14 AWG...8 AWG aluminium/copper
Circuit Breaker TypeARC-fault
Mounting Modeplug-on
Number Of Spaces Required1
Product Or Component Typeminiature circuit-breaker
ReturnabilityNo
Pep CodeENVPEP1406034
[Ue] Rated Operational Voltage120/240 V AC
Halogen-free StatusHalogen free product
Package Weight(Lbs)294.835 g
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1406034
- Eu Rohs Directive
- Compliant By Exemption
- Pep Code
- ENVPEP1406034
Halogene PerformanceHalogen free product
Ambient Air Temperature For Operation40 °C
Environmental DisclosureENVPEP1406034
Halogen Content PerformanceHalogen free product
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductHomeline
