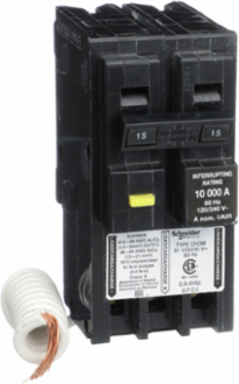

Schneider Electric CHOM215GFI Homeline Miniature Circuit Breaker, 15A, 2 Pole, 120/240V AC, 10kA
- MPN: CHOM215GFI
- UPC: 785901896982
- PPN: SCH-CHOM215GFI
CAD
$228.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 15A at 12/24 VAC. HOM breakers provide 1 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2. inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- Designed specifically for Schneider Electric Square DTM HomelineTM Canadian panels, this dual-pole breaker features a specialized "Plug-on Neutral" connection. By clipping directly onto the neutral bar, it eliminates the need for manual pigtail wiring, significantly reducing panel clutter and allowing for a much cleaner, faster installation during new construction or residential retrofits.
- This breaker provides essential 5mA ground fault circuit interruption, sensing minute leaks in current that could lead to lethal electrical shocks. It is a code-mandated requirement for high-moisture zones like hot tubs, pool pumps, and bathroom circuits, offering a high-sensitivity safety net that trips instantly to prevent injury or fire.
- As a 2-pole unit, the CHOM215GFI is engineered to protect 240V loads or multi-wire branch circuits by monitoring both "hot" legs simultaneously. This makes it the ideal solution for protecting heavy-duty residential equipment or outdoor circuits where a ground fault on either line must be isolated immediately to ensure total system safety.
- Featuring the industry-leading Visi-Trip indicator, a high-visibility red flag appears in the breaker window the moment a trip occurs. This allows homeowners and electricians to distinguish at a glance between a circuit that has been manually turned off and one that has tripped due to an electrical fault, streamlining troubleshooting and reducing downtime.
- Built to meet the rigorous standards of the Canadian Electrical Code (CEC), this Homeline component carries full CSA certification for residential distribution. Installing official Schneider Electric hardware ensures your home wiring passes inspection and maintains the integrity of your property s electrical safety rating and insurance coverage.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- ground fault protecting class A 6 mA
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P
[In] Rated Current15 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 12...AWG 4 aluminum/copper
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212006
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileENVEOLI2212006
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
