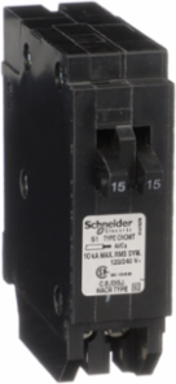

Schneider Electric CHOMT1515 Homeline Tandem Circuit Breaker 15A 120/240V AC 10kA Plug-In
- MPN: CHOMT1515
- UPC: 785901897323
- PPN: SCH-CHOMT1515
CAD
$28.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 15A and 15A at 12/24 VAC. This circuit breaker provides 1 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1. inches wide and 2.98 inches deep. CHOMT tandem breakers are CSA certified 15 A-[Ue] rated operational voltage {"1" 2018-04-13 05:11:04}-mounting mode plug-in-poles description 1P-Range Presentation
Features
- The CHOMT1515 is a single-pole tandem circuit breaker that provides two independent 15-Amp circuits while occupying only one 1-inch space in your panel. It is the go-to solution for adding a new circuit to a full panelboard without the need for a costly sub-panel or a complete electrical service upgrade.
- This breaker is designed specifically for Schneider Electric Homeline (CHOM) load centers. However, it will only install in specific slots of a "Tandem-Ready" panel (usually indicated by a notch in the bus bar). It is strictly for the Homeline series and is not compatible with Square D QO, Federal Pioneer, or other manufacturer panels.
- By splitting a standard 1-inch breaker body into two separate switching mechanisms, the CHOMT1515 allows you to double your circuit density. Each 15-Amp lever operates independently, meaning a fault on "Circuit A" will not trip "Circuit B," ensuring that half of your connected loads remain powered during a localized fault.
- Rated for 120V AC, this breaker features a 10,000 AIR (Amperes Interrupting Rating). It is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment, and provides the standard thermal-magnetic protection required for residential lighting and receptacle branch circuits.
- The CHOMT1515 is fully CSA (Canadian Standards Association) certified and meets the requirements of the Canadian Electrical Code (CEC). It features robust screw-clamp terminals that securely accept #14 to #8 AWG copper or aluminum wire, providing a reliable and code-compliant solution for Canadian home renovations and expansions.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- tandem
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description1P
[In] Rated Current15 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 1
Awg GaugeAWG 14...AWG 8 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
