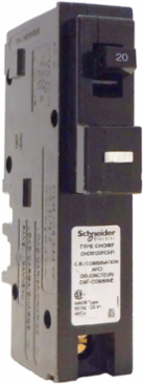

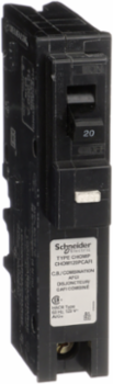

Schneider Electric CHOM120PCAFI Homeline Mini Circuit Breaker 20A 1 Pole 120V AC 10kA AIR
- MPN: CHOM120PCAFI
- UPC: 785901121022
- PPN: SCH-CHOM120PCAFI
- UNSPSC: 39121603
CAD
$92.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Homeline® miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity.
Features
- The CHOM120PCAFI is a 20-Amp, single-pole Arc Fault Circuit Interrupter (AFCI) breaker. Its primary job is to detect dangerous electrical arcs often caused by frayed cords, loose connections, or pierced wires behind walls and trip the power before a fire can start. The "PC" designation indicates it is a Plug-on Neutral device, which is the modern standard for fast, clean installations.
- Unlike older AFCI breakers that require a white coiled wire to connect to the neutral bar, this breaker features a metal clip on the bottom that snaps directly onto the specially designed neutral bar of a compatible load center. This eliminates gutter clutter, reduces installation time by up to 25%, and makes troubleshooting significantly easier.
- The breaker includes a Time-Saver Diagnostics feature. By following a specific sequence (pressing the "Test" button after a trip), the breaker will use its LED indicator to signal whether the trip was caused by an arc fault, a ground fault (if applicable), or a standard overload. This saves homeowners and electricians hours of diagnostic work.
- Rated for 20 Amps, this breaker is typically used for bedroom, living room, and general-purpose branch circuits as required by modern electrical codes. It is designed exclusively for Square D Homeline (CHOM) load centers. It will not fit into "QO" or older "P" series panels due to the specific bus bar and neutral bar configuration.
- The Schneider CHOM120PCAFI is CSA Certified and meets all current CEC requirements for Arc Fault protection in residential dwellings. It provides "Combination" protection, meaning it guards against both "Parallel" arcs (between wires) and "Series" arcs (along a single wire), providing the highest level of fire prevention available today.
Documentation & Downloads
Specifications
Key Specifications
- Connections - Terminals
- plug-on neutral
- Range Of Product
- Homeline
- Mounting Mode
- plug-on
- Poles Description
- 1P
- [Ue] Rated Operational Voltage
- 120 V AC
Circuit Breaker Typecombination ARC-fault
Product Or Component Typeminiature circuit-breaker
Short-Circuit Current10 kA
Line Rated Current20 A
Complementary
- Number Of Spaces Required
- 1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212006
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI2212006
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
