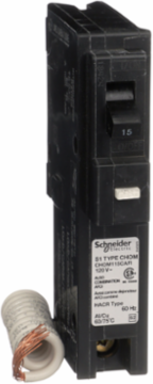

Schneider Electric CHOM115CAFI Miniature Circuit Breaker 15A 1 Pole 120VAC 10kA AIR Combo Arc Fault
- MPN: CHOM115CAFI
- UPC: 785901649939
- PPN: SCH-CHOM115CAFI
CAD
$142.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 12 VAC. HOM breakers provide 1 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1. inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- Designed to detect both high-energy parallel arcs and low-energy series arcs, this 15-amp Homeline breaker provides advanced protection against the hidden wiring faults that cause over 50% of residential electrical fires. It proactively monitors your branch circuits for dangerous sparking often caused by damaged cords or loose connections and shuts off power instantly before a fire can start.
- Featuring a traditional white pigtail neutral wire, this breaker is specifically engineered for Homeline load centers that do not have a Plug-on Neutral (PoN) bus bar. This ensures a secure, code-compliant connection in standard panels, making it the ideal solution for retrofitting older homes to meet modern electrical safety requirements without needing to replace the entire panel.
- Occupying just a single 1-inch space in your panel, this compact 120V breaker allows you to bring your living areas up to current NEC (National Electrical Code) standards for AFCI protection. It is engineered for use in Schneider Electric Canadian Homeline load centers, offering a reliable, factory-tested fit that ensures your home s electrical system remains safe, updated, and fully insured.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- plug-on
- Short-Circuit Current
- 10 kA
- Poles Description
- 1P
- [In] Rated Current
- 15 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Connections - Terminalspigtail neutral
Circuit Breaker Typecombination ARC-fault
Range Of ProductHomeline
Electrical Connectionscrew clamp terminals
Product Or Component Typeminiature circuit-breaker
Complementary
- Number Of Spaces Required
- 1
Awg GaugeAWG 14...AWG 8 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212006
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileENVEOLI2212006
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
