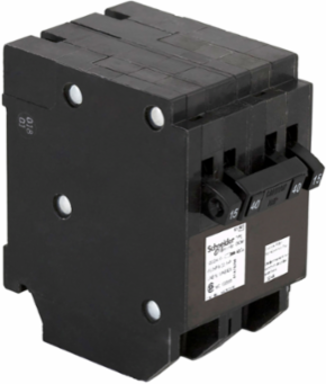

Schneider Electric CHOMT1515240 Homeline Quad Tandem Circuit Breaker, 2 x 15A, 1 x 40A, 120/240V, 10kA AIR
- MPN: CHOMT1515240
- UPC: 785901913993
- PPN: SCH-CHOMT1515240
CAD
$62.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This breaker consists of a two pole breaker in the middle and a single breaker on each side. It provides a standard circuit protection and is HACR rated. The two pole breaker is rated 40A at 120/240VAC and the single pole breakers are rated 15A and 15A at 120/240VAC. This circuit breaker provides 10kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. CHOMT tandem breakers are CSA certified.
Features
- The CHOMT1515240 is a high-density "Quad" circuit breaker from the Homeline (CHOM) series. It is designed to provide four independent circuits while only occupying two 1-inch slots in your panel. It is the ultimate solution for adding heavy-duty and general-purpose circuits to a panel that is physically out of space.
- This specific model number indicates the amperage of the four circuits: Outer Poles: Two independent 15-Amp single-pole breakers (for 120V lighting or outlet circuits). Inner Poles: One 40-Amp double-pole breaker (for a 240V heavy appliance circuit). This configuration is perfect for adding a 40A load (like an electric range or EV charger) plus two standard 15A circuits without needing a sub-panel.
- This breaker is designed specifically for Schneider Electric Homeline (CHOM) load centers. Because it is a tandem-style breaker, it features a physical "rejection" hook. It will only install in specific slots of a "Tandem-Ready" panel, usually identified by a notch in the bus bar. It is not compatible with Square D QO, Eaton, or Siemens panels.
- The two inner 40-Amp poles are physically and internally linked. If an overload or fault occurs on either side of the 240V circuit, both inner poles trip simultaneously to prevent "single-phasing." The two outer 15A poles remain independent, so a trip on your kitchen light won't shut off your 40A appliance.
- The CHOMT1515240 is fully CSA Certified and compliant with the Canadian Electrical Code (CEC). It features high-quality terminals that accept copper or aluminum wire. With a 10,000 AIR (Amperes Interrupting Rating), it provides the same professional-grade safety as standard full-size breakers while offering double the circuit density.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- quad
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description1P || 2P
[In] Rated Current15 A || 40 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 12...AWG 6 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
