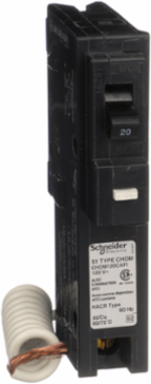

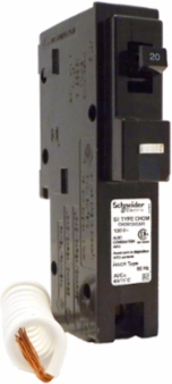

Schneider Electric CHOM120CAFI Homeline Mini Circuit Breaker, 20A, 1 Pole, 10kA AIR, Plug-On
- MPN: CHOM120CAFI
- UPC: 785901896890
- PPN: SCH-CHOM120CAFI
CAD
$142.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. It also includes Combination arc fault interrupt already installed. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- Designed specifically for Canadian Square DTM Homeline panels, this plug-on breaker utilizes a traditional flexible pigtail wire to connect securely to the panel s neutral bar. This time-tested design allows residential contractors and DIY homeowners to easily retrofit existing layouts or build out new distribution networks using standard, familiar wiring channels.
- Boasting a 10,000 Amperes Interrupting Rating (AIR) at 120V AC, this 20-amp, single-pole breaker is robustly built to safely isolate severe electrical overloads. It ensures your branch distribution systems can gracefully absorb and clear intense residential current faults, completely safeguarding your sensitive electronics, kitchen appliances, and structural wiring.
- Equipped with heavy-duty pressure screw clamps, the breaker's load terminals are certified to securely terminate a wide gauge range from 14 to 8 AWG in both copper and aluminum wire configurations. This adaptable terminal architecture allows for a cleaner installation inside tight residential panel enclosures while offering long-term resistance against metal expansion and junction oxidation.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- plug-on
- Short-Circuit Current
- 10 kA
- Poles Description
- 1P
- [In] Rated Current
- 20 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Connections - Terminalspigtail neutral
Circuit Breaker Typecombination ARC-fault
Range Of ProductHomeline
Electrical Connectionscrew clamp terminals
Product Or Component Typeminiature circuit-breaker
Complementary
- Number Of Spaces Required
- 1
Awg GaugeAWG 14...AWG 8 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212006
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileENVEOLI2212006
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
