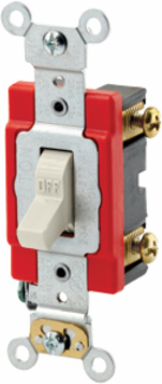

Leviton 1221-2T 20 Amp Toggle Switch, Single-Pole, Quiet, Extra Heavy Duty, 120/277 Volt, Light Almond
Leviton 1221-2T 20 Amp Toggle Switch, Single-Pole, Quiet, Extra Heavy Duty, 120/277 Volt, Light Almond
- MPN: 1221-2T
- UPC: 078477270721
- PPN: LEV-1221-2T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.14/ EA
Description
20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Industrial Grade, Self Grounding, Back & Side Wired - LIGHT ALMOND
Features
- Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- RoHS
- Compliant
- Warranty
- 10-Year Limited
CSACertified
NOM057
ULListed
Material Specifications
- Base Material
- Thermoplastic
- Contact Material
- Silver Alloy
- Ground Clips
- Brass
- Strap Material
- Steel
- Toggle
- Polycarbonate
ColorLight Almond
Cover MaterialThermoplastic
Grounding ScrewBrass 8-32
Terminal ScrewsBrass 8-32
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot Black-Hot White-Neutral Green-Gnd
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Product Features
- Body Material
- Thermoplastic
- Function
- Single-Pole
- Max. Amperage
- 16 Amp
Device TypeToggle Switch
GradeExtra Heavy-Duty Industrial Specification Grade
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 65°C
Electrical Specifications
- Amperage
- 20 A
- Endurance
- 50,000 cycles minimum
- HP Rating
- 1HP-120V 2HP-240V-277V
- Temperature Rise
- Maximum 30 degress C rise
Dielectric VoltageWithstands 1500V for 1 minute
GroundingSelf-Grounding
Overload UL20 Test100 cycles of OL at 4.8 times rated current
Voltage120/277 VAC
