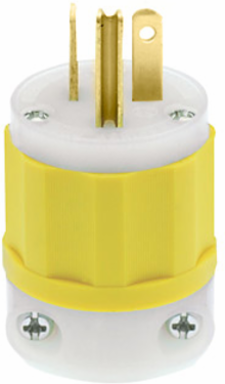

Leviton 5366-CY Industrial Grade 20 Amp 125 Volt Straight Blade Plug, NEMA 5-20P, Yellow-White

MPN: 5366-CY
UPC: 078477795880
PPN: LEV-5366-CY

$40.39

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

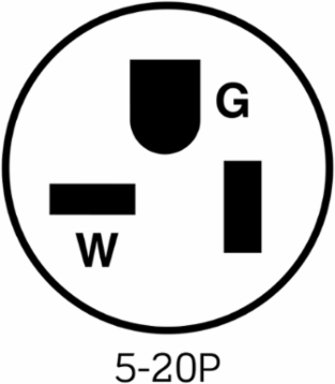

20 Amp, 125 Volt, NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, - YELLOW-WHITE

Features

Captive, quick drive assembly screws for faster assembly
Unique cord clamp accepts wide range of cord sizes
Rugged nylon construction resists impact, heat, chemicals, and rough use
Industry exclusive limited lifetime warranty

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	False

Standards and Certifications

ANSI	C-73
NEMA	WD-6
UL 498	File E13399
Warranty	Limited Lifetime Warranty Warranty

CSA C22.2 No. 42	File LR-406
NOM	057
UL Fed Spec WC-596	File E13393

Material Specifications

Assembly Screws	Steel, Zinc Plated
Blades/Contacts	Solid Brass
Clamp Insert	Nylon
Cord-Clamp	Nylon
Wire Module	Nylon

Back Cover	Thermoplastic
Body Material	Impact Modified Nylon
Color	Yellow-White
Terminal Screws	Brass

Mechanical Specifications

Cord Range	.245 - .700
Terminal Accom.	18-10 AWG

Product ID	Ratings and NEMA I.D. permanently marked on device
Terminal ID	Brass-Hot, Green-Ground, Silver-Neutral

Product Features

Brand	Black and White

Device Type	Straight Blade Plug

Environmental Specifications

Environment	Dry
Operating Temperature	-40°C to 60°C

Flammability	Rated HB or better UL94

Electrical Specifications

Amperage	20 A
Dielectric Voltage	Withstands 2000V per UL498
Pole	2
Voltage	125 VAC

Current Interrupting	Certified for current interrupting at full rated current
Grounding	Grounding
Temperature Rise	Max 30C after 250 cycles OL at 200 percent rated current
Wire	3
