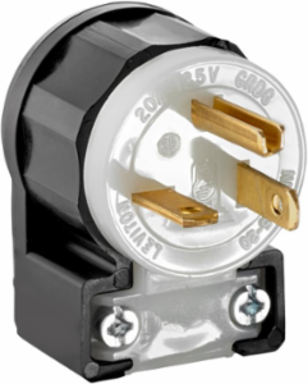

Leviton 5366-CA Straight Blade Plug, 20 Amp, 125 Volt, Industrial Grade - Black & White
Leviton 5366-CA Straight Blade Plug, 20 Amp, 125 Volt, Industrial Grade - Black & White
- MPN: 5366-CA
- UPC: 078477795934
- PPN: LEV-5366-CA
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$45.09/ EA
Description

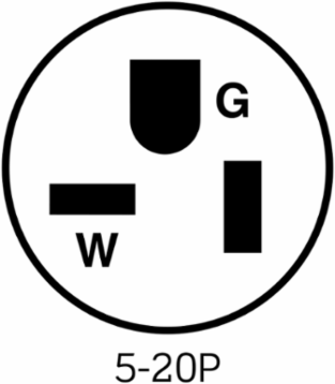

20 Amp, 125 Volt, NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL 498
- File E13399
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL Fed Spec WC-596File E13393
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Amperage
- 20 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Grounding
- Grounding
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Torque Range
- 10-14 in-lbs
- Wire
- 3
Cord Range.245 - .700
Dielectric VoltageWithstands 2000V per UL498
Pole2
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Voltage125 VAC
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Black and White
- Feature
- Angled
Device TypeStraight Blade Plug
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
