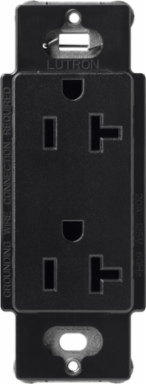

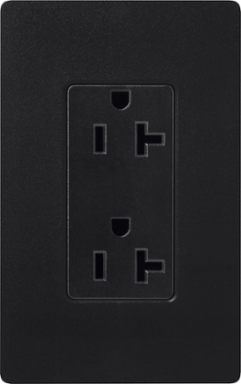

Lutron SCR-20-MN 20 Amp Satin Color Receptacle Midnight, 125V, 3-Wire, Wallbox Mounted
Lutron SCR-20-MN 20 Amp Satin Color Receptacle Midnight, 125V, 3-Wire, Wallbox Mounted
- MPN: SCR-20-MN
- UPC: 027557029858
- PPN: LUT-SCR-20-MN
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$45.36/ EA
Description
Coordinate Lutron lighting controls and switches with Lutron Claro receptacles to complement your clients' decor. Install with screw terminals or push-in connections. Available in 7 Gloss colors and 20 Satin colors, Lutron receptacles become beautiful accessories that let you coordinate and customize the look of each room in any home. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes (1) duplex standard receptacle; Satin finish
- 20 Amp capacity
- 125V only (US style wall box)
- Features screw terminal and push in connections for easy installation

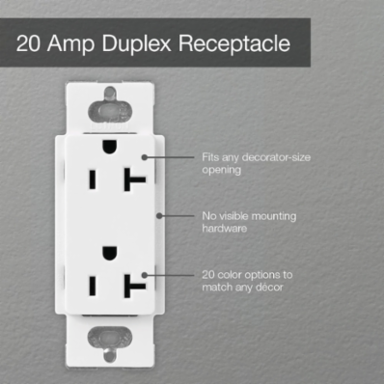

- No visible mounting hardware
- Coordinates with Claro decorator-style dimmers and switches (sold separately)
- Flawlessly blends with trim, wall coverings and furnishings
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Wallplate sold separately
Specifications
Specifications
- Amperage Rating
- 20 A
- Wire Size
- 10 to 12
- Number of Wires
- 3,4,5
- Voltage Rating
- 125
- Environmental Conditions
- 0 to 90% humidity, non-condensing
- Wattage
- 2500 W
- Decorative Color
- Midnight
- Insulation
- Plastic
- Surface Finishing
- Satin
- Temperature Rating
- 32 to 104 F
- Aesthetic Finish
- Satin
- Color
- Midnight
NEMA Rating5-20R
Temperature Rating, Maximum104 F
TypeReceptacle
ConnectionScrew terminal
Family ColorBlack
Number of Poles2
Material QualityPlastic/Metal
MountingWallbox
MaterialPlastic/Metal

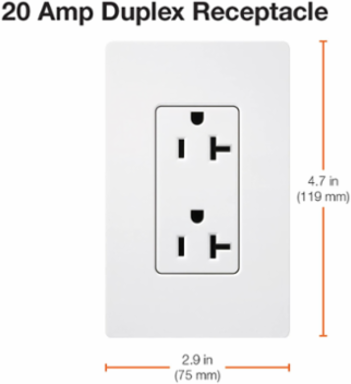

Size4.69 x 2.94;119 x 75 in;mm
FinishSatin
Downloads
