ABB OT1600E11 OT1600E11 SWITCH-DISCONNECTOR
- MPN: OT1600E11
- PPN: ABB-OT1600E11
- UNSPSC: 39122233
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

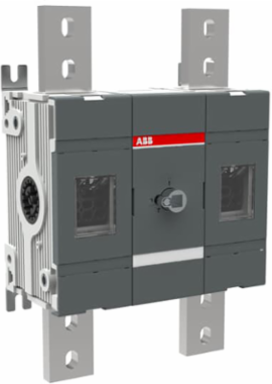

2-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Specifications
Dimensions
- Product Net Width
- 254.5 mm
- Product Net Depth / Length
- 167 mm
Product Net Height372 mm
Product Net Weight11.9 kg
Technical
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A(1000 V) 1600 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kA
- Pollution Degree
- 3
- Switches Operating Mechanism
- Mechanism Between the Poles11 (Between the Poles)
- Position of Line Terminals
- Top In - Bottom OutBottom In - Top Out
- Standards
- IEC 60947-3
- Mounting Type
- Base mounting
- Degree of Protection
- Front IP00
- Tightening Torque
- acc. IEC 60947-1 50 … 75 N·m
- Lock Type
- No
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A
Rated Operational Power AC-23A (Pe)(400 ... 415 V) 710 kW(500 V) 900 kW(690 V) 1200 kW
Conventional Thermal Current (Ithe)Fully Enclosed 1600 A
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 110 kA
Power Lossat Rated Operating Conditions per Pole 48 W
Handle TypeHandle and shaft not included
Distance Between PhasesStandard
Operating ModeFront operated
Special FunctionsNo
Number of Poles2
Terminal TypeLug terminals
Mechanical Durability6000
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SCC301233D0201
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
Environmental Information1SCC301233D0201
RoHS Information1SCC011020D0201
Technical UL/CSA
- Tightening Torque
- acc. IEC 60947-1 50 … 75 N·m
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
