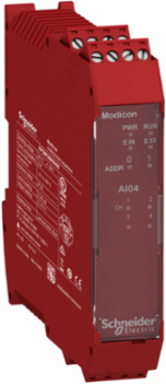

Schneider Electric XPSMCMAI0400 Safe I/O Expansion Module with 4 Analog Inputs, IP20 Rating

MPN: XPSMCMAI0400
PPN: SCH-XPSMCMAI0400
UNSPSC: 32151705

$1878.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Safe I/O Expansion Module with 4 Analog Inputs, IP20 Rating

Features

Modular safety controller are designed to provide safety solutions requiring conformity to PLe and SIL3
Reduce time-to-market: Offers designed specifically meeting the 6 safety functions required on your machine
Modicon MCM offers an extensive range of safety products designed to provide protection for personnel and equipment
Modicon MCM safety controller are designed for monitoring multiple safety functions
Increase profitability: Safety designed from standalone components to embedded safety network solutions
Improve efficiency: One partner for the complete safety chain covering the complete range of safety functions
Simplify integration: Wide range of connections for machine controllers

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Italy

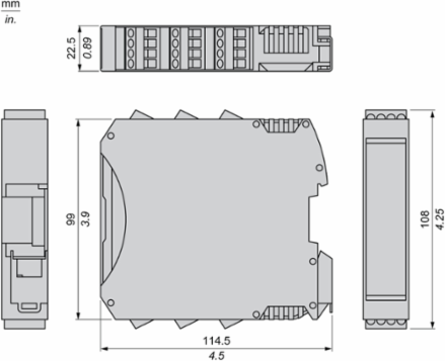

Depth	114.5 mm

Weight	164 g

Complementary Attributes

Integrated Connection Type	backplane expansion bus
Us Rated Supply Voltage	24 V - 20...20 % DC

Uimp Rated Impulse Withstand Voltage	4 kV IEC 61800-5-1

Important Information Attributes

Cable Cross Section	0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
Local Signalling	1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address4 LEDs green/red IN input status
Safety Reliability Data	PFHd = 1.53E-8 1/h, DC > 99 %MTTFd = 106 years high
Voltage State 0 Guaranteed	0...10 V analog input, 0...10 V analog input voltage, 0...10 V analogue input, 0...10 V analogue input circuit, 0...10 V analogue input signals, 0...10 V temperature sensor
Certificate Agency	RCM, cULus, TÜV
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.22975533869076348
Carbon Footprint Of The Manufacturing Phase A1 To A3	6 kg CO2 eq., 5.617265300200563
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	e
Without Single Use Plastic	Yes
Product Kit Identifier	N
Electrical Connection	screw terminal
Function Of Module	analogue input current analog inputanalogue input voltage analog input current
Mounting Support	omega 35 mm DIN rail EN 50022
Overvoltage Category	II
Power Dissipation In W	3 W
Product Or Component Type	safe input expansion module
Range Of Product	Preventa Safety automation
Service Life	20 year(s)
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	133 kg CO2 eq.
Database Version	2024-01
Height Nominal	99 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	1020
Recyclability Potential In %	2

Current State 0 Guaranteed	0...20 mA analog input), 0...20 mA analog input current), 0...20 mA analogue input), 0...20 mA analogue input circuit), 0...20 mA analogue input signals), 0...20 mA temperature sensor)
Safety Level	can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
Vibration Resistance	+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections Terminals	2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Carbon Footprint Of The Distribution Phase A4	0.045918831471195354, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.128679329089809, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	127 kg CO2 eq., 127.2214464091827
Local Publishable Date	2025-11-25
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2030
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Device Short Name	XPSMCM
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Insulation	250 V AC between power supply and housing IEC 61800-5-1
Number Of Terminal Blocks	4
Power Consumption In W	3 W
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quality Labels	CE
Returnability	No
Shock Resistance	10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	22.5 mm
Customs Code	8538908180
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	262.8

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-10-55 °C-10-55 °C
Environmental Disclosure	ENVPEP2606036_V1
Ip Degree Of Protection	IP20 enclosure)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2606036_V1
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Reach Free Shvc	Yes
China Rohs Regulation	X
Carbon Footprint	133.24306520863502
Ambient Air Temperature For Storage	-20-85 °C-20-85 °C
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	10-95 %
Pep Verification Date	2026-06-22
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
