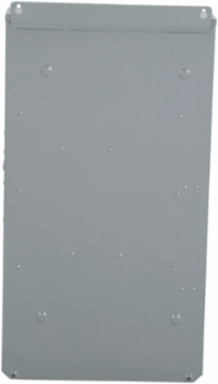

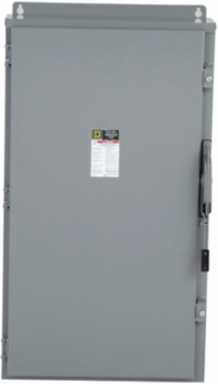

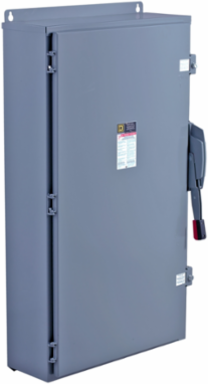

Square D CHU365AWK Heavy Duty Safety Switch 400A 600V AC/DC 3 Poles NEMA 12

MPN: CHU365AWK
UPC: 785901344629
PPN: SCH-CHU365AWK
UNSPSC: 39122205

$3738.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered to handle demanding electrical environments, this safety switch is a robust choice for power distribution applications. With a capacity of 400A and the ability to operate at voltage levels up to 600V AC/DC, it ensures reliable service in heavy-duty settings. Its three-pole design adds to its versatility, making it suitable for various industrial setups. Additionally, the NEMA 12 rating provides dust-tight and drip-tight protection, enhancing durability and safety. This heavy-duty safety switch from Schneider Electric exemplifies a commitment to quality and reliability in electrical control systems.

Features

Long term durability
Efficient installation
Operation safety features
500hp maximum
CSA and UL certifed
.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	10.13 in

Weight	68040 g

Complementary Attributes

Line Rated Current	400 A
Ue Rated Operational Voltage	600 V AC/DC

Maximum Horse Power Rating	350 hp at 600 V AC 50/60 Hz for 3 phase motors250 hp at 480 V AC 50/60 Hz for 3 phase motors125 hp at 240 V AC 50/60 Hz for 3 phase motors

Important Information Attributes

Persona Type Ids	LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Motor Power Hp	50 hp at 600 V DC, 50 hp at 250 V DC
Certificate Agency	cUL, UL listed file E154828
Carbon Footprint Of The End Of Life Phase C1 To C4	165 kg CO2 eq., 165.2046530503109
Carbon Footprint Of The Manufacturing Phase A1 To A3	347 kg CO2 eq., 347.2839789767122
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	none
Electrical Connection	lugs
Number Of Poles	3
Product Or Component Type	Single Throw Safety Switch
Series Name	heavy duty
Sustainable Packaging	Yes
Database Version	2024-01
Height Nominal	46.25 in
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	90

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Tightening Torque	550-550 lbf.in 53.49-380.0 mm² (1/0 AWG...750 kcmil), 550-550 lbf.in 53.49-152.0 mm² (1/0 AWG...300 kcmil)
Carbon Footprint Of The Distribution Phase A4	172.2383801309081, 172 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.16448819035004505, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	547 kg CO2 eq., 547.0206826529308
Local Publishable Date	2026-08-11
Device Type	LV equipment - LV fuse - switch
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1906
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	1/0 AWG...750 kcmil copper or aluminium
Disconnector Device Type	non-fusible disconnect
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	1 232 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	26.25 in
Customs Code	8536509045
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503029EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-01
Psr Version	PSR-0005-ed3-2023 06 06

Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Carbon Footprint	1231.912183001212
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 12 galvannealed steel
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503029EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
