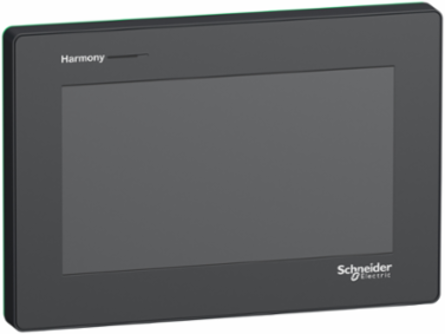

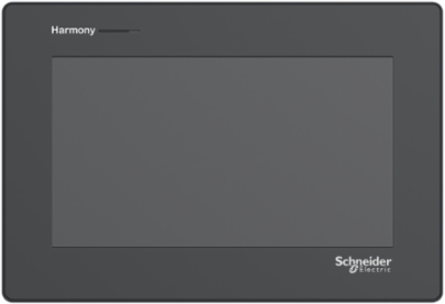

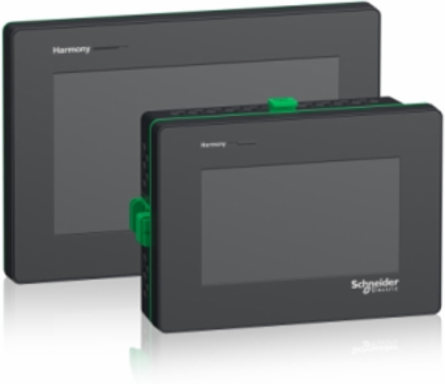

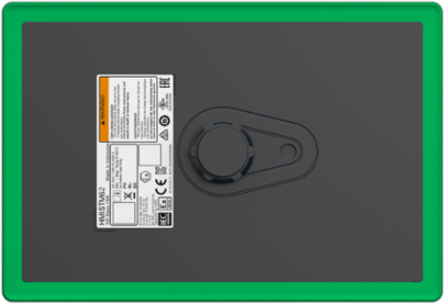

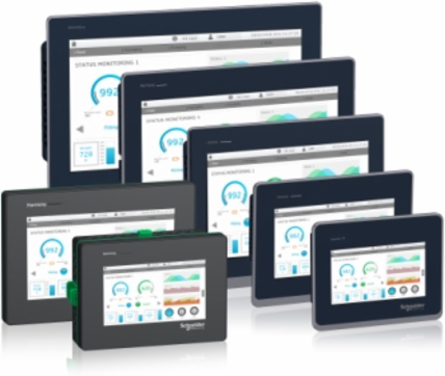

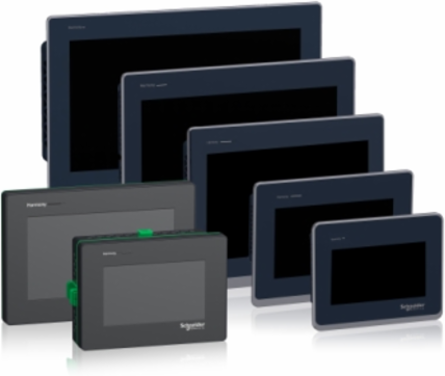

Schneider Electric HMISTM6400 Harmony ST6 7 Inch Touch Panel Display, 800 x 480 Resolution, 2 Ethernet Ports, 24V DC
- MPN: HMISTM6400
- PPN: SCH-HMISTM6400
CAD
$2659.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Basic Modular HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI has a multi-color status indicator showing the various operating modes. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is a modular HMI with 22mm pushbutton mounting system and is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 208mm (width) x 153mm (height) x 45mm (depth) and weighs 0.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only),Type 12 and Type 13 (on the front panel when properly installed in an enclosure).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United Kingdom, Indonesia, Singapore, United States

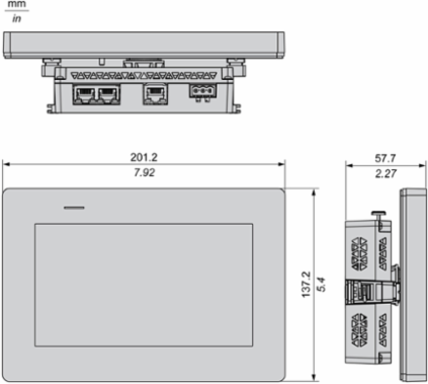

Depth57.7 mm
Physical Attributes
- Display Size
- 7 inch
Display Color16 million colours
Complementary Attributes
- Integrated Connection Type
- 1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback2 Ethernet - female RJ45bottom
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Character Font
- ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
- Fixing Mode
- Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201, Ø 22 mm hole IEC 61131-2, Ø 22 mm hole IEC 61000-6-2
- Product Brand
- Schneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic
- Vibration Resistance
- +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.12874, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.012913
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 558 kg CO2 eq., 557.54
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- HMI - Graphical display unit
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- Use Carbon Footprint
- 557.54
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2007003EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2518
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Resolution
- 800 x 480 pixels WVGA
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
- Front Material
- plastic
- Inrush Current
- 30 A
- Memory Description
- 1 GB device memory128 MB user data memory512 KB backup memory
- Port Ethernet
- 10/100BASE
- Processor Name
- ARM Cortex-A8
- Product Or Component Type
- touch panel screen
- Returnability
- Yes
- Software Version
- EIME v5.8.1
- Sustainable Packaging
- No
- Touch Panel
- single touch analogue resistive
- Display Color
- 16 million colours
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US
- Height Nominal
- 137.2 mm
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %)
- Carbon Footprint (Kg Co2 Eq Total Life Cycle)
- 756.65
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Air Pollution (M3) Manufacturing [A1-a3]
- 18482
- Air Pollution (M3) Operational Energy Use [B6]
- 52917
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 10074
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 1.8087
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 1.0759
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 198.69
- Hazardous Waste Disposed Of (Kg) Total Life Cycle
- 246.6
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 66.01
- Net Use Of Fresh Water (M3) Total Life Cycle
- 4.6391
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 1.3664
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 32.383
- Photochemical Ozone Formation (Kg.Equivalent.C2h4) Total Life Cycle
- 0.1069
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 2683.5
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 11736
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 14903
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 1.8203
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 1.3292
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 45.864
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 18.627
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 14404
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 1.8178
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 1.3279
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 1.2531
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 44.611
- Water Eutrophication (Kg.Equivalent.P04 3-) Operational Energy Use [B6]
- 0.1536
- Water Pollution (M3) Manufacturing [A1-a3]
- 12149
- Water Pollution (M3) Installation [A5]
- 2.0295
- Water Pollution (M3) End Of Life [C1-c4]
- 15.136
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Downloadable ProtocolsModbus, Uni-TE, third party protocols
Local Signallingstatus LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
Realtime Clockbuilt-in 0...50 °C, built-in 10...90 % RH
Certificate AgencyCE, UKCA, cULus, RCM, KC, cULus Class 1 Division 2, DNV, ABS, RINA, BV
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.27508, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]199 kg CO2 eq., 198.69
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Manufacturing Carbon Footprint198.69
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Brightness16 levels
Display Typecolour TFT LCD
Enclosure MaterialPC
Immunity To Microbreaks2 ms
MarkingCE
Number Of Pages200 application pages
Power Consumption In W10.4 W
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony ST6
Shock Resistance147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
Supplyexternal supply
Total Lifecycle Carbon Footprint757 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2007003EN
Pep Verification Date2020-10-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.4W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh911.04
Energy Model - Installation [A5]Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US
Width Nominal201.2 mm
Cut-out DimensionsØ 22.5 mm
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)997.000 g
Take-backNo
Air Pollution (M3) Total Life Cycle71414
Air Pollution (M3) Distribution [A4]5.4764
Air Pollution (M3) End Of Life [C1-c4]9.5853
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]2466.5
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]7604.3
Global Warming (Kg.Equivalent.Co2) Total Life Cycle756.65
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]557.54
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]179.29
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.2951
Net Use Of Fresh Water (M3) Manufacturing [A1-a3]3.2725
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle124.68
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]92.288
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle14423
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]1.8178
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]1.3279
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]2729.3
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]12170
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle479.25
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]433.38
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]18.627
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2664.8
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]11736
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1.2531
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle478
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]433.38
Water Pollution (M3) Total Life Cycle39998
Water Pollution (M3) Distribution [A4]21.171
Water Pollution (M3) Operational Energy Use [B6]27810
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 756.65
- Circularity Profile
- ENVEOLI2007003EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Operation0-50 °C
Environmental DisclosureENVPEP2007003EN
Halogen Content PerformanceProduct contains halogen above thresholds
Nema Degree Of ProtectionNEMA 4 front panel (indoor use)NEMA 13 front panel (in enclosure)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2007003EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- touch panel screen
Range Of ProductHarmony ST6
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLEUser replaceable
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$2659.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$2659.20/ EA
Loading add to cart quantity...
