Tripp Lite B126-002 2-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft., TAA
Tripp Lite B126-002 2-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft., TAA
- MPN: B126-002
- UPC: 037332157508
- PPN: TRP-B126-002
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$358.90/ EA
Description

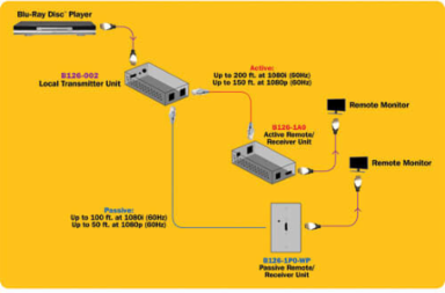

Works with Tripp Lite’s B126-Series receivers to split a single HDMI signal into two separate signals, each on a single Cat5e/6 cable, to two projectors, monitors or televisions up to 150 ft. away.
Features
- Perfect for digital signs, trade shows and retail settings
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install
- 1-year limited warranty
Specifications
Features & Specifications
- Max Supported Video Resolution
- 1080p @60Hz
- HDCP Specification
- 1.4
- Recommended Category Cable
- Cat5e/Cat6 Cables
- 3D Video Supported
- Yes
HDMI Specification1.4
Audio Specification7.1 Channel Surround Sound (Multi-Channel or PCM)
Max Supported Color Depth24-bit True Color
TechnologyHDMI
Certifications
- Certifications
- Tested to FCC, RoHS, REACH
Connections
- Ports
- 2
- Side B - Connector 1
- (2) RJ45 (FEMALE)
Side A - Connector 1HDMI (FEMALE)
Connector PlatingNickel
Physical
- Color
- Black
- Material of Construction
- Secc
- Shipping Dimensions (hwd / in.)
- 2.00 x 7.00 x 6.40
- Unit Dimensions (hwd / in.)
- 1 x 2.5 x 3.6
- Unit Weight (lbs.)
- 0.19
Included Mounting AccessoriesYes
RackmountableYes
Shipping Weight (lbs.)0.90
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Green (Power), Orange (Activity)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 5V / 2A
- External Power Supply Cord Length (m.)
- 1.37
- External Power Supply Plug(s)
- NEMA 1-15P North America
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.5A
External Power Supply Cord Length (ft.)4.5
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsFCC; RoHS; UL; cUL
Communications
- Signal Range (ft.)
- 200
Environmental
- Operating Temperature Range
- -10 to 75 C (14 to 167 F)
- Relative Humidity
- 0% to 85%, Non-Condensing
Storage Temperature Range-20 to 80 C (-4 to 176 F)
Overview
- UPC Code
- 037332157508
AC AdapterInput: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
Downloads
