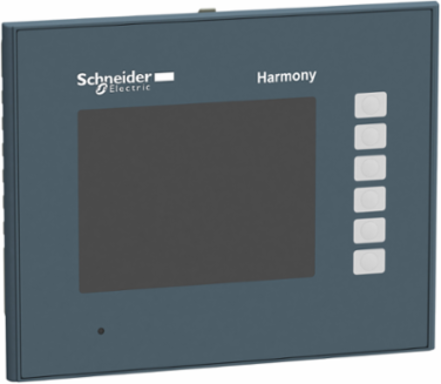

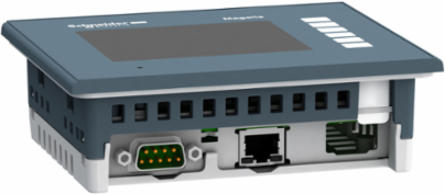

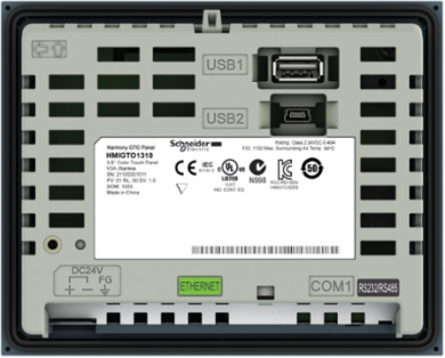

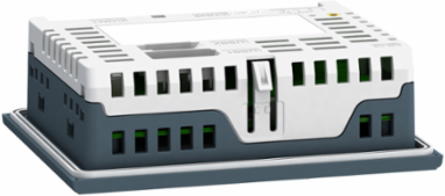

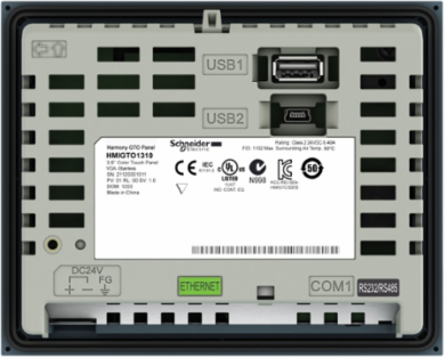

Schneider Electric HMIGTO1310 Harmony GTO 3.5 Inch Touchscreen HMI, 320x240 QVGA, 96MB, IP65

  • MPN: HMIGTO1310
  • PPN: SCH-HMIGTO1310
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $942.34

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display, 320 x 240 pixels (QVGA), 6 function keys and 96MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, United Kingdom, Indonesia, Mexico, United States, ZZ
    Depth42 mm

    Physical Attributes

    Display Size3.5 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection TypeCOM1 serial link RJ45 RS232C/RS485 2400...115200 bpsCOM1 serial link RJ45 RS232C/RS485 187.5 kbps Siemens MPIEthernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
    Maximum Power Consumption In W5.2 W when power is not supplied to external devices4.2 W when backlight is OFF4.3 W when backlight is dimmed, 9.6 W

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC, SI
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Brightness16 levels by touch panel, 16 levels by software
    Data Storage EquipmentSD card, <= 32 GB, SDHC card, <= 32 GB
    Local Signallingstatus LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting upstatus LED red, steady power supply (ON), status LED clear, faded power supply (OFF)
    Carbon Footprint Of The Distribution Phase [A4]0.064075, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.13128
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]394 kg CO2 eq., 394.01
    Local Publishable Date2026-07-22
    Stocking FlagN
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Use Carbon Footprint394.01
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1402027EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2513
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Control Button Type6 operation defined using Vijeo Designer push-button key F1...F6
    Display Resolution320 x 240 pixels QVGA
    Enclosure MaterialPPT
    Front MaterialPPT
    Memory Descriptionflash EPROM, 96 MB
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeadvanced touchscreen panel
    Resistance To Electrostatic Discharge6 kV contact discharge IEC 61000-4-2 level 3
    Shock Resistance147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
    Software Versionv5.9.4
    Supply Voltage Limits19.2-28.8 V
    Terminal Typetouchscreen display
    Touch Panelresistive film, 1000000 cycles
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1402027EN
    Pep Verification Date2023-12-29
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential In %8
    Width Nominal132 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)712.000 g
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]2.4517
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]393.72
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]394.01
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]1.3646
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]6.6481
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]595.37
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]96.447
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]100.09
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-2.6854
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]18.176
    Materials For Recycling (Kg) Installation [A5]0.073
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]60.904
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]0.5054
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle6.7555
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.047
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]588.29
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]1.4637
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]6.6649
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]12.671
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle6.7555
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.047
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]1.3646
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]6.6481
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1.3974
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.296
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1096.5
    Water Use (M3 Eq) Operational Energy Use [B6]15.953
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Character FontChinese (simplified Chinese), Korean, Taiwanese (traditional Chinese), Japanese (ANK, Kanji), ASCII (European characters)
    Downloadable ProtocolsSchneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAYMitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
    Certificate AgencyKCC, cULus, C-tick, CE, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.37608, 0.4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]45 kg CO2 eq., 45.161
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint45.161
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Data Backed Up512 KB internal RAM SRAM)
    Display Typebacklit colour TFT LCD
    Fixing Modeby 4 screw clamps
    Inrush Current30 A
    Processor NameARM926EJ-S
    Product Mountingflush mounting
    Range Of ProductHarmony GTO
    ReturnabilityYes
    Software PackageVijeo Designer
    Supplyexternal source
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint440 kg CO2 eq.
    Touch Sensitive Zone1024 x 1024
    Vibration Resistance3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-21 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
    Display Color65536 colours
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide 3.5&quot; TFT Smart Display during 10 years and maximum use rate at 9.6W, based on below function:& 10 - 3.5&quot; Wide Touchscreen panel& 10 - Status LED& 10 - SD Card Interface& 10 - Serial comunication interface (RS-485, RS-232C)& 10 - USB Interface (Tyepe-A, mini-B)& 10 - Ethernet interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - EN 61131-2& 10 - IEC 61000-6-2
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh840.96
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
    Height Nominal106 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]45.099
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]45.161
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]575.62
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]10440
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-4.0067
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]5657.9
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-4.8682
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]0.5962
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]3.7982
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]641.76
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]7.8226
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-1.9529
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]3.2695
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]6.7555
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle12134.3125
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]0.8939
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]11537
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-4.5585
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1096.5
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]6.7555
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]568.87
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]10440
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.9597
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.3974
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]11.274
    Water Use (M3 Eq) Manufacturing [A1-a3]12.679
    Customs Code8537109170

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint439.742435
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402027EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4X front panel (indoor use)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1402027EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-50 °C
    Circularity ProfileENVEOLI1402027EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
    Operating Altitude< 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2023-12-29
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typeadvanced touchscreen panel
    Range Of ProductHarmony GTO

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable BatteryUSER_REPLACEABLEUser replaceable
    Battery Typelithium internal RAM 100 days 5 day(s) 10 year(s)
