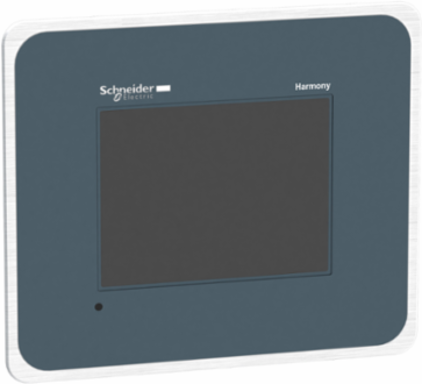

Harmony GTO Advanced Touchscreen Panel, 5.7 Inch QVGA, Stainless Steel
Schneider Electric

Schneider Electric HMIGTO2315 Harmony GTO Advanced Touchscreen Panel, 5.7 Inch QVGA, Stainless Steel

  • MPN: HMIGTO2315
  • PPN: SCH-HMIGTO2315
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3352.98

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTO IP66K touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with a stainless steel frame, 320 x 240 pixels (QVGA) and 96MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia
    Depth59.5 mm

    Physical Attributes

    Display Size
    5.7 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bpsCOM2 serial link RJ45 RS485 187.5 kbps Siemens MPIEthernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
    Maximum Power Consumption In W6.5 W when power is not supplied to external devices4.5 W when backlight is OFF5 W when backlight is dimmed, 10.5 W

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Brightness
    16 levels by touch panel, 16 levels by software
    Data Storage Equipment
    SD card, <= 32 GB, SDHC card, <= 32 GB
    Fixing Mode
    by 8 nuts, by 4 L brackets
    Certificate Agency
    KCC, CE, cULus, C-tick, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    1.3374, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    126 kg CO2 eq., 125.81
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    IDIBS
    Manufacturing Carbon Footprint
    125.81
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    4
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Display Resolution
    320 x 240 pixels QVGA
    Enclosure Material
    PPT
    Inrush Current
    30 A
    Processor Name
    ARM926EJ-S
    Product Mounting
    flush mounting
    Provided Equipment
    1 protective cover
    Resistance To Electrostatic Discharge
    6 kV contact discharge IEC 61000-4-2 level 3
    Shock Resistance
    147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
    Software Version
    v5.9.4
    Supply Voltage Limits
    19.2-28.8 V
    Terminal Type
    touchscreen display
    Touch Panel
    resistive film, 1000000 cycles
    Type Of Cooling
    natural convection
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP1402012EN
    Pep Verification Date
    2023-12-19
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential In %
    25
    Width Nominal
    213.5 mm
    F-gas Free
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free Status
    Product contains halogen above thresholds
    Package Weight(Lbs)
    1.823 kg
    Take-back
    No
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    125.7
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
    -1.6348
    Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]
    1.3374
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    1564.1
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
    3.6193
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
    -30.955
    Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]
    0.1232
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
    160.78
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    190.91
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -29.311
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
    37.653
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
    -1.5498
    Materials For Recycling (Kg) Installation [A5]
    0.191
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    21.787
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -5.9192
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]
    1.4031
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    12.856
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
    2.554
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
    65.077
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    34.012
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
    -1.611
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    12.856
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
    2.5506
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
    65.051
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    3.7329
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -3.438
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    1199.3625
    Water Use (M3 Eq) Manufacturing [A1-a3]
    26.362
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Character FontTaiwanese (traditional Chinese), Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII, Korean
    Downloadable ProtocolsSchneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAYMitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
    Local Signallingstatus LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting upstatus LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmissionSD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
    Carbon Footprint Of The Distribution Phase [A4]0.18307, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.3 kg CO2 eq., 0.34768
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]431 kg CO2 eq., 430.94624999999996
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    End Of Life Carbon Footprint1.3374
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1402012EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2513
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Data Backed Up512 KB internal RAM SRAM)
    Display Typebacklit colour TFT LCD
    Front Materialstainless steel 304
    Memory Descriptionflash EPROM, 96 MB
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typeadvanced touchscreen panel
    Range Of ProductHarmony GTO
    ReturnabilityNo
    Software PackageVijeo Designer
    Supplyexternal source
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint559 kg CO2 eq.
    Touch Sensitive Zone1024 x 1024
    Vibration Resistance3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-21 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
    Display Color65536 colours
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide 7.5&quot; Wide TFT Smart Display during 10 years and maximum use rate at 12W, based on below function:& 10 - 7.5&quot; Wide Touchscreen panel& 10 - Status LED& 10 - SD Card Interface& 10 - Serial comunication interface (RS-485, RS-232C)& 10 - USB Interface (Type-A, mini-B)& 10 - Ethernet interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - IEC 61000-6-2& 10 - IEC 61131-2
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh919.8
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
    Height Nominal181 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]1.3364
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]125.81
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-1.6526
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]2.5506
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]65.051
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]1475.8
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]2.3721
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-26.121
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.53
    Impacts Related To Land Use/Soil Quality (-) Manufacturing [A1-a3]-3.8612
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]701.925
    Marine Aquatic Eutrophication (Kg Of N Equiv) Manufacturing [A1-a3]0.1316
    Materials For Recycling (Kg) End Of Life [C1-c4]0.3077
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]1.1307
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.0066
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle12.856
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1598.1
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.8789
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-32.566
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1199.3625
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle12.856
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1551.2
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]3.6193
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-30.955
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.7329
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]30.279
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]1.827
    Customs Code8537109160

    Environment Attributes Main

    Ip Degree Of Protection
    IP20 IEC 60529 rear panel)IP66K IEC 60529 front panel), IP66K DIN 40050-9 front panel)
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Silicon Free
    No
    Ambient Air Temperature For Operation
    0-55 °C
    Circularity Profile
    ENVEOLI1402012EN
    Eu Rohs Directive
    Compliant By Exemption
    Nema Degree Of Protection
    NEMA 4X front panel (indoor use)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1402012EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint558.6243999999999
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402012EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Operating Altitude< 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2023-12-19
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    advanced touchscreen panel
    Range Of Product
    Harmony GTO
    Provided Equipment1 protective cover

    ETIM

    ETIM 8
    EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable Battery
    USER_REPLACEABLEUser replaceable
    Battery Typelithium internal RAM 100 days 5 day(s) 10 year(s)

    Similar Products

    Loading carousel layout...

    CAD$3352.98/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
