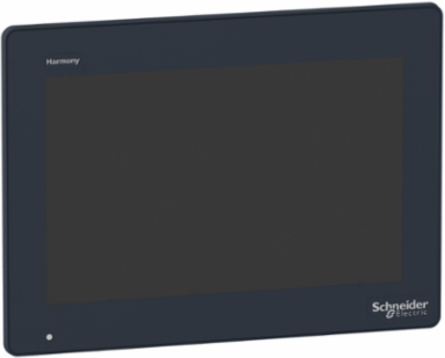

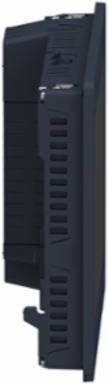

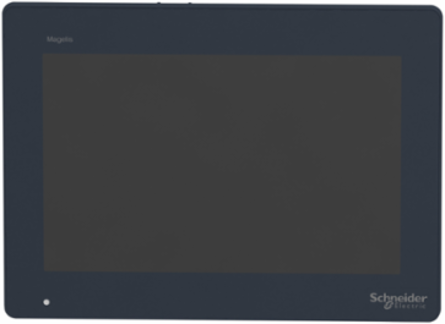

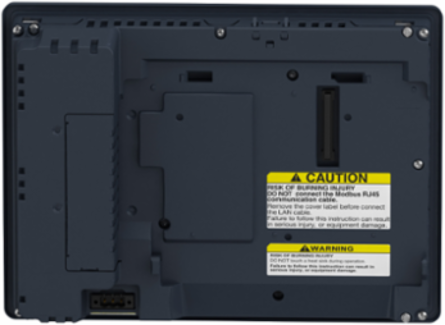

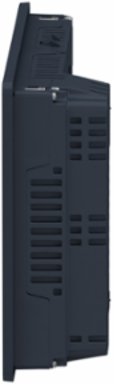

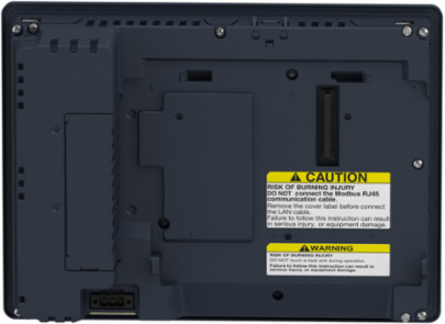

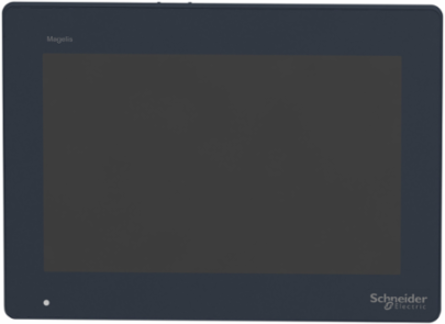

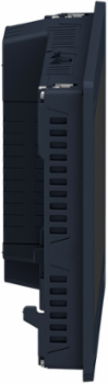

Schneider Electric HMIDT551 Harmony GTU Touchscreen Panel, 10.1 Inch, 1280x800 Resolution, IP66/IP67

  • MPN: HMIDT551
  • PPN: SCH-HMIDT551
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3459.97

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 10" color TFT LCD display with 1280 x 800 pixels and 262K colors. This universal touchscreen operator interface (HMI) is ideal for high-performance monitoring and communication. High-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina, Indonesia, United States
    Depth67 mm

    Physical Attributes

    Display Size10.1 inch
    Display Color262144 colors

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC, SI
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Certificate AgencyRCM, cULus, KC, CE, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]2.7215000000000003, 3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]145 kg CO2 eq., 145.275
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint145.275
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution1280 x 800 pixels WVGA
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Pixel Resolution1280 x 800
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony GTU
    Shock Resistance147 m/s²IEC 61131-2
    Supply Voltage Limits10.8-28.8 V
    Terminal Typetouchscreen display
    Touch Panelsingle touch analogue resistive
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1402017EN
    Pep Verification Date2023-12-18
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
    Recyclability Potential In %56
    Width Nominal268.5 mm
    Cut-out Dimensions255 (+ 1/- 0) x 185 (+ 1/- 0) mm
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]144.675
    Climate Change - Total ( Kg Co2 Eq.) Installation [A5]0.8895
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]130.375
    Impacts Related To Land Use/Soil Quality (-) Manufacturing [A1-a3]0.4468
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]40.38
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]10.3725
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle10.3725
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1983
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]130.375
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle9.4425
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]16.87
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Carbon Footprint Of The Distribution Phase [A4]0.8647500000000001, 0.9 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.9 kg CO2 eq., 0.8895
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]265 kg CO2 eq., 265.4373913043478
    Local Publishable Date2026-07-27
    Stocking FlagN
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Installation Carbon Footprint0.8895
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1402017EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2514
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Aspect Ratio4:3
    Display Typecolour TFT LCD
    Inrush Current30 A
    Power Consumption In W6.5 W
    Product Or Component Typeadvanced touchscreen panel
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint415 kg CO2 eq.
    Touchscreen Resolution1024 x 1024
    Vibration Resistance3.5 mm constant amplitude 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2
    Display Color262144 colors
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide 12" Wide TFT Smart Display during 10 years and maximum use rate at 11.5W, based on below function:& 10 - 12" Wide Touchscreen panel& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh569.4
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
    Height Nominal198.5 mm
    [Us] Rated Supply Voltage12...24 V DC power supply
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)3.553 kg
    Take-backNo
    Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3]0.6006
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]145.275
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]9.2525
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]309.925
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-5.6875
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle10.3725
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]9.92
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]10.3725
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]9.2525
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-212.9
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]9.4425
    Customs Code8528592500

    Environment Attributes Main

    Ip Degree Of Protectionfront panel IP66, front panel IP67
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-60 °C IEC 61131-2
    Circularity ProfileENVEOLI1402017EN
    Eu Rohs DirectiveCompliant By Exemption
    Nema Degree Of ProtectionNEMA 4X front panel
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1402017EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint415.18814130434777
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402017EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2023-12-18
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typeadvanced touchscreen panel
    Range Of ProductHarmony GTU

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
