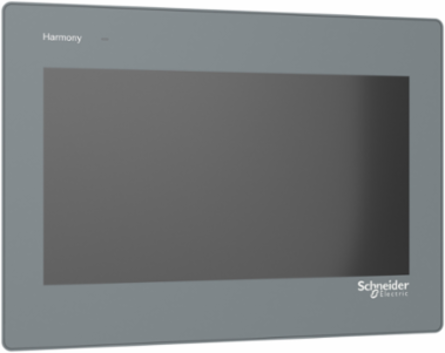

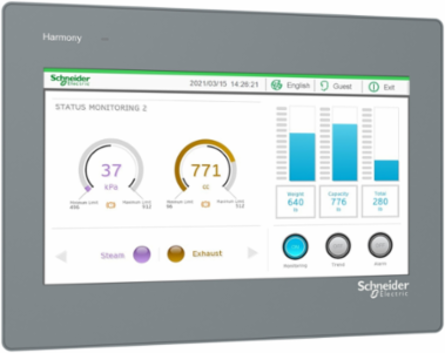

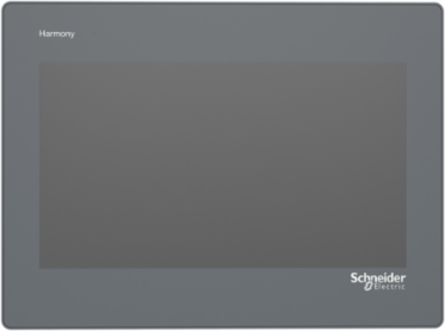

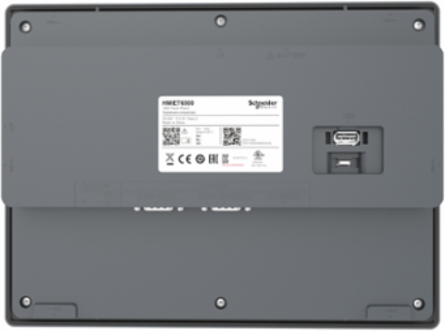

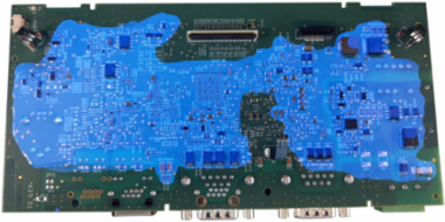

Schneider Electric HMIET6500 10" wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
- MPN: HMIET6500
- PPN: SCH-HMIET6500
CAD
$1330.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

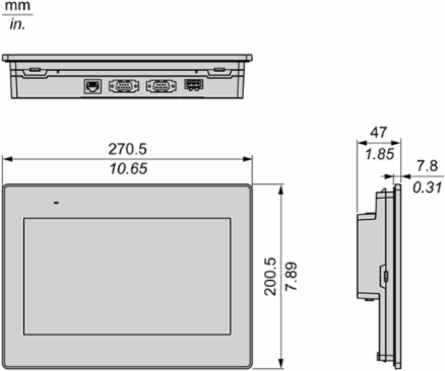

HMIET6500 is an essential touchscreen panel of the Schneider Electric's Easy Harmony ET6 range. This single touch resistive HMI Ethernet panel has high resolution and more colors. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by Vijeo Designer Basic software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 256 MB as system and application memory, 128 KB nonvolatile memory. This HMI ET6 supports Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 270.5mm (width) x 200.5mm (height) x 47mm (depth) and weighs 0.98Kg. This is intended for industries like Packaging, HVAC, Pump, Electronics, battery, machine tools and material working etc. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like UL, CE, KC, EAC, China RoHS, REACH. The maintenance accessories (installation fastener screw, power supply connector, battery, etc.) and external options (USB download cable, USB extension cable, screen protection sheet, etc.) are available with HMI ET6. It is designed for panel mounting by 4 or 6 fastener screws (the quantity of screws depends on screen size). This range is designed with high resolution screen, more colors, and Ethernet capability to enable OEMs to optimize their HMI design and investment. The degree of protection is IP65F.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Indonesia |
|---|
| Depth | 47 mm |
|---|
Physical Attributes
| Display Size | 10 inch |
|---|
| Display Color | 16 million colours |
|---|
Complementary Attributes
| Integrated Connection Type | 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C 2400...115200 bps)bottom1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 2400...115200 bps)bottom, COM2 serial link 2400...187500 bps)bottom, 1 Ethernetbottom1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Character Font | ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese) |
| Memory Description | device memory 256 MB, user data memory 256 MBbackup memory 128 kB |
| Vibration Resistance | +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz) |
| Carbon Footprint Of The Distribution Phase [A4] | 0.127727779, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0126444987 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 882 kg CO2 eq., 881.9922222222 |
| Local Publishable Date | 2026-02-24 |
| Pre Comm Date | 2021-04-26 |
| Stocking Flag | N |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2101004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2125 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Display Resolution | 1024 x 600 pixels WSVGA |
| Electromagnetic Compatibility | electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge) |

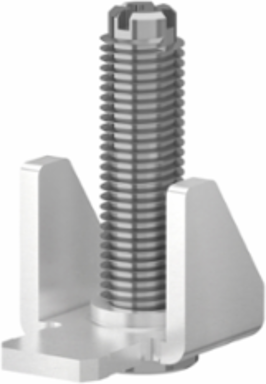

| Fixing Mode | by 4 screws 1.6...5 mm thick panel |
| Immunity To Microbreaks | 5 ms |
| Local Signalling | status LED green, steady operatingstatus LED orange, steady software starting upstatus LED red, steady power supply (ON)status LED, off power supply (OFF) |
| Operating System | VxWorks |
| Power Consumption In W | 11 W |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | touch panel screen |
| Returnability | Yes |
| Software Designation | Vijeo Designer Basic |
| Software Version | EIME v5.8.1 |
| Sustainable Packaging | No |
| Touch Panel | single touch analogue resistive |
| Display Color | 16 million colours |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU |
| Height Nominal | 201 mm |
| [Us] Rated Supply Voltage | 24 V DC +/- 20 % |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1137.07 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Downloadable Protocols | Modbus, Uni-TE, third party protocols |
| Realtime Clock | built-in 0...50 °C, built-in 10...90 % RH |
| Certificate Agency | CE, UL, EAC (pending), KC-Mark (pending) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2734934076, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 225 kg CO2 eq., 225.4899977268 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2021-03-29 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 1 |
| Function Option | Standard |
| Brightness | 16 levels |
| Display Type | colour TFT LCD |
| Enclosure Material | PC |
| Front Material | plastic |
| Inrush Current | 30 A |
| Number Of Pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Processor Name | ARM Cortex-A8 |
| Product Brand | Schneider Electric |
| Range Of Product | Harmony ET6 |
| Shock Resistance | 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2 |
| Software Package | Vijeo Designer Basic |
| Supply | external supply |
| Total Lifecycle Carbon Footprint | 1 108 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2101004EN |
| Pep Verification Date | 2021-03-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide a human machine interface during 10 years and a 100% use rate at 9W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 963.6 |
| Energy Model - Installation [A5] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 127-230V; ID / Electricity mix; AC; 110-220V; BR / Electricity mix; AC; 220V; RU |
| Width Nominal | 271 mm |
| Cut-out Dimensions | 255 x 185 mm panel cut dimension |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Package Weight(Lbs) | 1.557 kg |
| Take-back | No |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1137.07 |
| Customs Code | 8537109170 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -20-60 °C, -20-60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Operation | 0-50 °C |
| Environmental Disclosure | ENVPEP2101004EN |
| Ip Degree Of Protection | IP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel) |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2101004EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 1107.8960856344 |
| Circularity Profile | ENVEOLI2101004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2021-03-01 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | touch panel screen |
|---|
| Range Of Product | Harmony ET6 |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
Batteries & Runtime Attributes
| Removable Battery | USER_REPLACEABLEUser replaceable |
|---|
