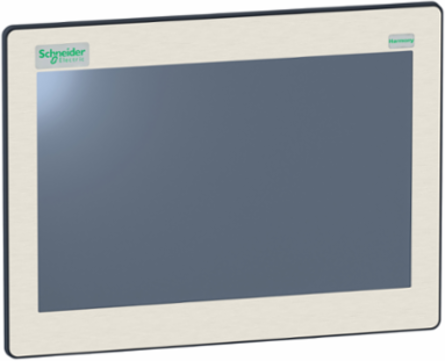

Schneider Electric HMIDT65XFH Harmony GTUX Touchscreen Panel 12.1 Inch, 1280 x 800 Resolution, IP66
- MPN: HMIDT65XFH
- PPN: SCH-HMIDT65XFH
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Elevate your automation and control projects with the Schneider Electric Harmony GTUX Touchscreen Panel, featuring a robust 12.1-inch display with a crisp 1280 x 800 resolution. This panel is designed to endure tough environments, boasting an IP66 rating that ensures protection against dust and water, making it ideal for various industrial applications. With its intuitive touchscreen interface, users can easily navigate and monitor processes, enhancing productivity and efficiency in any setting. This HMI display combines functionality with durability, proving to be an essential component in PLC and data acquisition systems.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 12 V DC
- Power Consumption
- 12.5 W
- Display Size
- 12.1 in.
- Touchscreen Resolution
- 1024 x 1024
- Display Colour
- 262,144 colors
- Touch Panel
- single touch analogue resistive
- Width
- 308.5 mm
- Depth
- 68 mm
- Operating Altitude
- 2000 m
- Pollution Degree
- 2
- Operating Ambient Temperature
- -30 to 70 °C IEC 61131-2
- Vibration Resistance
- 7 mm amplitude 5-9 Hz, 19.6 m/s² 9-150 Hz IEC 61131-2
- Electrostatic Discharge Immunity
- Level 3 IEC 61000-4-2
Supply Voltage Limits10.8-28.8 V
Inrush Current30 A
Display Resolution1280 x 800 pixels WVGA
Display TypeColour TFT LCD
Luminance1000 cd/m²
Cut-out Dimensions295 (+1/-0) x 217 (+1/-0) mm
Height230.5 mm
Net Weight3.2 kg
IP Degree of ProtectionIP66f, IP67f, front panel Type 4X
Environmental Characteristic3C3, UV resistant
Storage Ambient Temperature-30 to 70 °C
Shock Resistance392 m/s² IEC 61131-2
Product CertificationsKC, CE, RCM, EAC, ATEX zone 2/22, IECEx, UL, CSA, UKCA, UKEX
