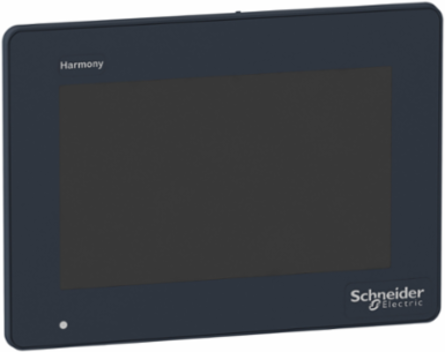

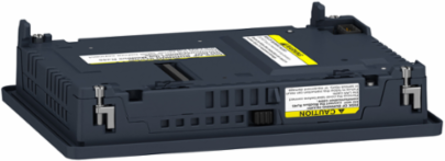

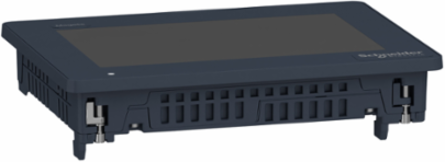

Schneider Electric HMIDT351 Harmony GTU 7 Inch Touchscreen Panel, 800 x 480 pixels, IP66/IP67
- MPN: HMIDT351
- PPN: SCH-HMIDT351
CAD
$2215.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 7" color TFT LCD display with 1280 x 800 pixels and 262K colors. This universal touchscreen operator interface (HMI) is ideal for high-performance monitoring and communication. High-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Indonesia, United States
Depth67 mm
Physical Attributes
- Display Size
- 7 inch
Display Color262144 colors
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- cULus, RCM, CE, KC, UKCA, UKEX
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.3063200000000001, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 70 kg CO2 eq., 69.73200000000001
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Resolution
- 800 x 480 pixels WVGA
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Pixel Resolution
- 800 x 480
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony GTU
- Shock Resistance
- 147 m/s²IEC 61131-2
- Supply Voltage Limits
- 10.8-28.8 V
- Terminal Type
- touchscreen display
- Touch Panel
- single touch analogue resistive
- Type Of Cooling
- natural convection
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1402017EN
- Pep Verification Date
- 2023-12-18
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 56
- Width Nominal
- 203.6 mm
- Cut-out Dimensions
- 190 (+ 1/- 0) x 135 (+ 1/- 0) mm
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]
- -6.9724
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 62.58
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 938.68
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -431.24
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 73.772
- Materials For Recycling (Kg) End Of Life [C1-c4]
- 0.666
- Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]
- 1.0216
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 4.9788
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 969.44
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -5.3464
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 4.9788
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 951.84
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 62.58
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 4.5324
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 8.0976
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.41508000000000006, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.4 kg CO2 eq., 0.42696
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]265 kg CO2 eq., 265.4373913043478
Local Publishable Date2026-03-25
Stocking FlagY
Device TypeHMI - Graphical display unit
TraceabilityYes
Average Life Duration7 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1402017EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2514
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Aspect Ratio4:3
Display Typecolour TFT LCD
Inrush Current30 A
Power Consumption In W6.5 W
Product Or Component Typeadvanced touchscreen panel
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint337 kg CO2 eq.
Touchscreen Resolution1024 x 1024
Vibration Resistance3.5 mm constant amplitude 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2
Display Color262144 colors
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide 12" Wide TFT Smart Display during 10 years and maximum use rate at 11.5W, based on below function:& 10 - 12" Wide Touchscreen panel& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh569.4
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal148.6 mm
[Us] Rated Supply Voltage12...24 V DC power supply
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)1.547 kg
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]69.444
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]4.4412
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-102.268
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]148.764
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]83.096
Materials For Recycling (Kg) Installation [A5]0.236
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-16.1576
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle4.9788
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.0752
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]62.584
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.9788
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.0752
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]4.4412
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.5324
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-4.2192
Customs Code8528520000
Environment Attributes Main
- Ip Degree Of Protection
- front panel IP66, front panel IP67
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Ambient Air Temperature For Operation
- 0-60 °C IEC 61131-2
- Circularity Profile
- ENVEOLI1402017EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X front panel
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1402017EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint337.31775130434784
Ambient Air Temperature For Storage-20-60 °C-20-60 °C
Environmental DisclosureENVPEP1402017EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2023-12-18
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- advanced touchscreen panel
Range Of ProductHarmony GTU
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
