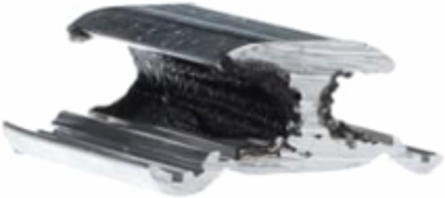

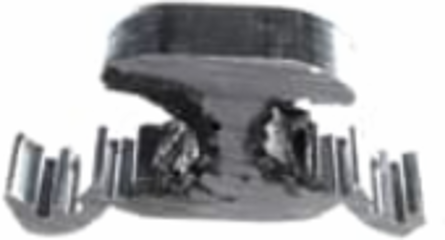

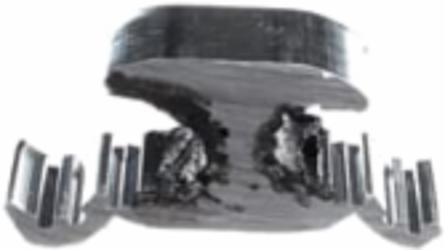

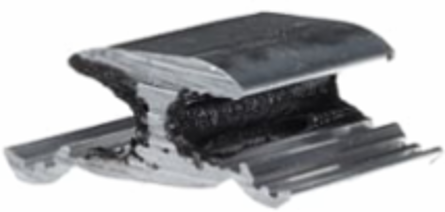

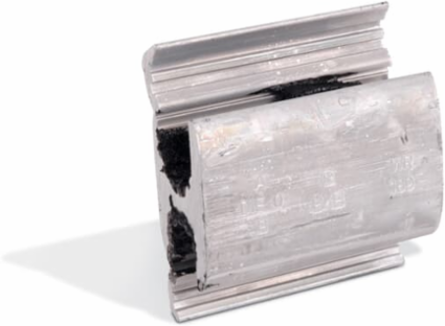

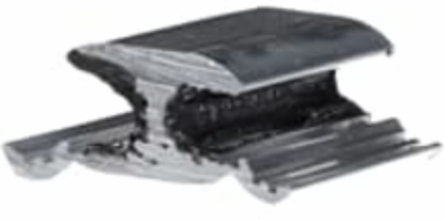

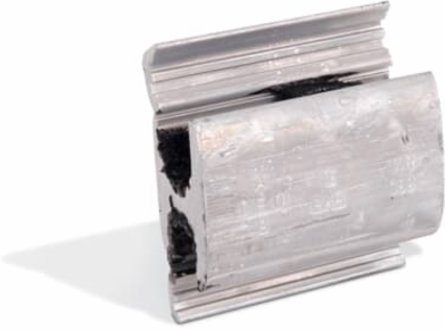

Blackburn WR189 AL HTYPE COMP CONN 2/0-1/0ACSR 2-6
- MPN: WR189
- UPC: 783786103027
- PPN: T-B-WR189
- UNSPSC: 39121409
CAD
$3.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum H-Tap Connector, Wide Range, Conductor Range Main ACSR 1/0-3, Stranded 2/0-2, Solid 3/0-1, TAP ACSR 2-6, Stranded 1-6, Solid 1/0-6, Die O
Features
- Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Blackburn |
|---|---|
| Standard | RUS Accepted. Complies with ANSI C119.4 Specifications |
| Connection | Compression |
| Number Of Conductors | 2 |
| Insulation | None |
| Environmental Conditions | All Seasons / Conditions |
| Country of Origin | Mexico |
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Application | For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors |
|---|---|
| Size | Length 1-11/16 inch |
| Wire Size | Main: 1/0 to #3 ACSR or 2/0 to #2 STR or 3/0 to #1 SOL AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWG |
| Material | Aluminum |
| Temperature Rating | up to 90 C |
| Mounting | None |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
| IGCC | 4543 |
