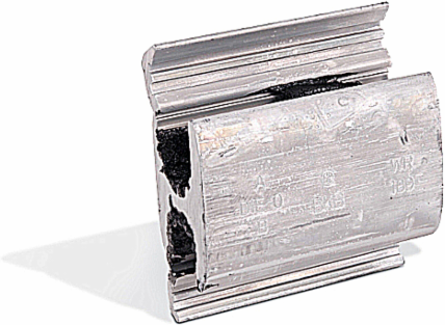

Blackburn DB 6 Aluminum Wide-Range Tap Connectors 2-1/2 Inch Length, 25 pcs, 1350 Aluminum Alloy
- MPN: DB 6
- UPC: 783786717217
- PPN: T-B-DB 6
CAD
$9.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum H-Tap Compression Connectors, length 2-1/2 inch, die D. 6 Connectors
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121409 Wire connectors
- Brand Name
- Blackburn
- Special Features
- Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area.
- Standard
- RUS Accepted. Complies with ANSI C119.4 Specifications
- Connection
- Compression/ Crimp
- Number Of Conductors
- 2
- Finish
- Bare
- Insulation
- None
- Mounting
- None
IGCC4543 Wire connectors
TypeAluminum Wide-Range Aluminum Tap Connectors
ApplicationFor Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
SizeLength 2-1/2 inches
Wire SizeDiameter Main - .461-.563, Tap - .338-.447
MaterialAluminum
Voltage RatingNone since Uninsulated
Temperature Ratingup to 90 Degrees C.
Environmental ConditionsAll Seasons / Conditions
Packaging
- Inner Quantity
- 25
- Outer Quantity
- 250
- Weight Uom
- 25 lbs. per 100
Inner Dimensions (inches)9.9x5.3x6
Outer Dimensions (inches)27.5x12x10.5
