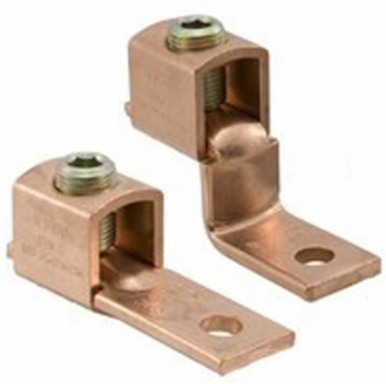

ILSCO SLU-70 Copper Mechanical Lug Offset, Conductor Range 2-8, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
ILSCO SLU-70 Copper Mechanical Lug Offset, Conductor Range 2-8, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
- MPN: SLU-70
- UPC: 783669829976
- PPN: ILC-SLU-70
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$5.75/ EA
Description
Copper Mechanical Lug Offset, Conductor Range 2-8, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.25
- Drive Type Main
- Slotted
- Height (mm)
- 23.1902
- Mounting Hole Diameter (IN)
- 0.266
- Tang Length (IN)
- 0.677
- Tang Offset (IN)
- 0.418
- Tang Thickness (IN)
- 0.083
- Tang Width (IN)
- 0.5
- Weight BX (LB)
- 4.547
- Width (mm)
- 12.7
Dimension G (mm)6.35
Height BX (IN)2
Length (mm)38.5572
Mounting Hole Diameter (mm)6.7564
Tang Length (mm)17.1958
Tang Offset (mm)10.6172
Tang Thickness (mm)2.1082
Tang Width (mm)12.7
Width BX (IN)6.1875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Collar Style
- V-Bottom
- Contains DE-OX®
- No
- Number of Conductors
- 1, 2, 3
- Number of Poles
- 1
ConnectionMechanical
Mounting Hole TypeThru
Number of Mounting Holes1
Number of Ports / Wireways1
Material and Finish
- Conductor Material
- Copper
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
MaterialCopper
Wire Binding Hardware MaterialSteel
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str - 8 Str
Wire Combinations(2) 6 Str, (1) 8 Str and (1) 4 Str, (1) 8 Str and (1) 6 Str, (2) 4 Str, (3) 8 Str, (3) 6 Str, (1) 6 Str and (1) 4 Str, (2) 8 Str and (1) 6 Str, (2) 8 Str and (1) 4 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366982997
Specifications
- Height
- 0.913 in | 23.1902 mm
- Weight
- 0.01 lbs
Length1.518 in | 38.5572 mm
Width0.5 in | 12.7 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
- Wire Binding Screw Size
- 5/16
Number of Wire Binding Screws per Port1
Wire Binding Torque4 - 6 AWG = 45, 8 AWG = 40, 2 AWG = 50
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
