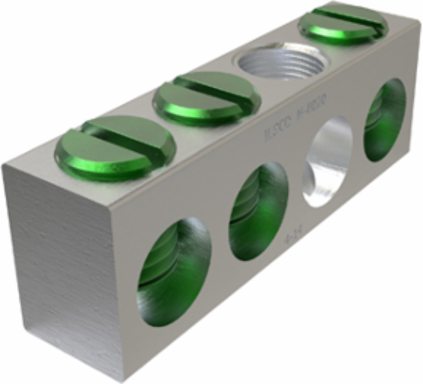

ILSCO NBAS-003-1-B Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 3 Ports, 1 Hole, #10 Bolt, Headless Slot Drive, UL, CSA
- MPN: NBAS-003-1-B
- UPC: 783669005530
- PPN: ILC-NBAS-003-1-B
CAD
$6.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 3 Ports, 1 Hole, #10 Bolt, Headless Slot Drive, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.437 in | 11.0998 mm
- Weight
- 0.0269587398237466 lbs
Length1.296 in
Width0.312 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.804
- Drive Type Main
- Slotted
- Height (mm)
- 11.0998
- Mounting Hole Diameter (IN)
- 0.203
- Weight BX (LB)
- 0.475
Dimension G (mm)20.4216
Height BX (IN)1.9
Mounting Bolt/Stud Size (mm)254
Mounting Hole Position (IN)3
Width BX (IN)4
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Recognized
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 3
- Number of Poles
- 1
- Number of Usable Ports
- 3
Mounting Hole TypeThru
Number of Mounting Holes1
Number of Ports / Wireways4
Type of AccessoryNBST-2/0
Material and Finish
- Conductor Material
- Aluminum, Copper
- Material
- Aluminum
- Wire Binding Hardware Material
- Steel
Connector FinishTin
Wire Binding Hardware FinishGreen Zinc
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900553
Carton Quantity DescriptionSTD PACK QTY 20
NEMA CodeS-588-3
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
- Wire Binding Screw Size
- 1/4
Number of Wire Binding Screws per Port1
Color
- Color
- Silver
