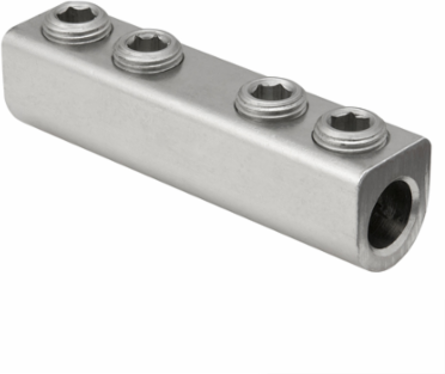

ILSCO SPA-750 Aluminum Splicer/Reducer, Dual Rated, Conductor Range 750-250, Tin Plated, UL, CSA
- MPN: SPA-750
- UPC: 783669857108
- PPN: ILC-SPA-750
CAD
$229.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Splicer/Reducer, Dual Rated, Conductor Range 750-250, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.75 in |
|---|---|
| Weight | 1 lbs |
| Length | 5.438 in |
|---|---|
| Width | 1.375 in |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Drive Size Main | 1/2 |
|---|---|
| Height BX (IN) | 2.25 |
| Width BX (IN) | 4.25 |
| Drive Type Main | Internal Hex |
|---|---|
| Weight BX (LB) | 1.1135 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL / CULUS Specification | UL 486A/B Listed |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 2 |
| Number of Ports Tap | 1 |
| Wire Orientation | Parallel |
| Contains DE-OX® | No |
|---|---|
| Number of Poles | 1 |
| Number of Ports / Wireways | 2 |
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Tin |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 750 kcmil - 250 kcmil |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 750 kcmil - 250 kcmil |
| Conductor Range AL Stranded (Secondary, tap, load) | 750 kcmil - 250 kcmil |
|---|---|
| Conductor Range CU Stranded (Secondary, tap, load) | 750 kcmil - 250 kcmil |
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-1 |
| Carton Quantity Description | STD PACK QTY 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366985710 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 2 |
|---|---|
| Wire Binding Torque | 500 |
| Wire Binding Screw Size | 15/16 |
|---|
Color
| Color | Silver |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
