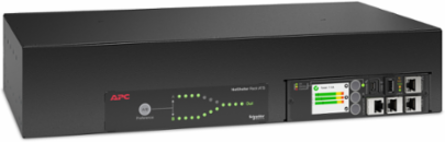

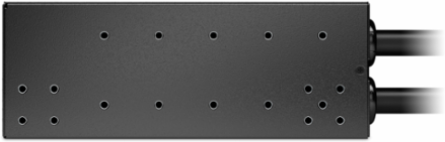

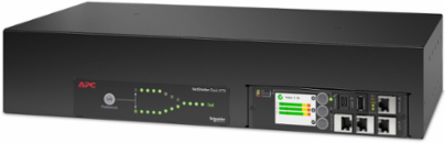

APC AP4431A Netshelter Rack Automatic Transfer Switch, 2U, 30A, 208V, 14.33 lb
- MPN: AP4431A
- UPC: 731304432470
- PPN: APC-AP4431A
CAD
$2776.12
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4431A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4431A is single phase 2U Rack ATS with 30A rated current, 208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with 2 NEMA L6-30P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Voltage | 208 V AC 1 phase |
|---|---|
| Load Rating | 4992 VA |
| Height | 3.46 in (8.8 cm) |
| Depth | 9.29 in (23.6 cm) |
| Input Connection Type | NEMA L6-30P 24A 2P+E |
| Cable Length | 8 ft (2.44 m) |
| Operating Ambient Temperature | 23 to 113 °F (-5 to 45 °C) |
| Operating Relative Humidity | 5 to 95 % |
| Operating Altitude | 0 to 10,000 ft |
| RoHS | Compliant |
| Mercury Free | Yes |
| Standards | FCC Part 15 class A, ICES-003 |
| Amperage | 30A |
|---|---|
| Rack Units | 2U |
| Width | 17.01 in (43.2 cm) |
| Weight | 14.33 lb (6.5 kg) |
| Output Connection Type | NEMA L6-30R 24A 2P+E |
| Mounting Position | Front, Horizontal |
| Storage Ambient Temperature | -13 to 149 °F (-25 to 65 °C) |
| Storage Relative Humidity | 5 to 95 % |
| Storage Altitude | 0 to 50,000 ft (0 to 15,240 m) |
| Lead Free | Yes |
| Product Certifications | T V-C, T V-NURTL, VCCI Class A |
| California Proposition 65 | Contains DINP, cancer warning |
