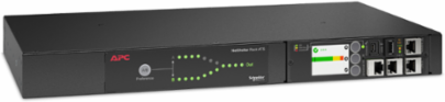

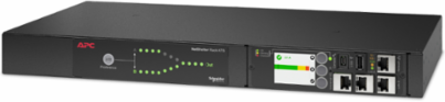

APC AP4421A Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, 12 C13 Outputs
- MPN: AP4421A
- UPC: 731304432425
- PPN: APC-AP4421A
CAD
$2291.04
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Voltage | 230 V AC 1 phase |
|---|---|
| Load Capacity | 2000 VA |
| Operating Temperature | 23 to 113 °F (-5 to 45 °C) |
| Operating Altitude | 0 to 10000 ft |
| Dimensions (H x W x D) | 1.73 in x 17.01 in x 9.29 in |
| Input Connection | IEC 60320 C14 10A 2P+E |
| Rack Units | 1U |
| Mounting Position | Horizontal |
| Material | Toxic Heavy Metal Free, Lead Free, Mercury Free |
| Product Orientation | No preference |
| Amperage | 10 A |
|---|---|
| Frequency | 50/60 Hz |
| Storage Temperature | -13 to 149 °F (-25 to 65 °C) |
| Storage Altitude | 0 to 50000 ft |
| Weight | 8.66 lb (3.93 kg) |
| Number of Outputs | 12 IEC 60320 C13 10A 2P+E |
| Mounting Location | Front |
| Relative Humidity | 5 to 95 % |
| Compliance | RoHS Compliant, EN 55022 Class A, FCC Part 15 Class A, Prop 65 Warning, REACH SVHC Present, WEEE Compliant |
| Color | Black |
