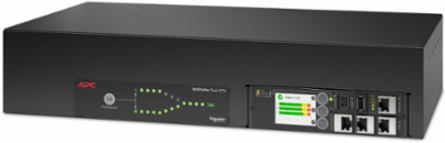

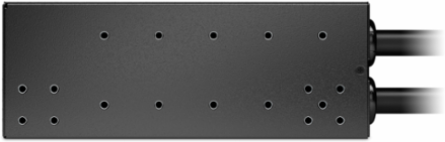

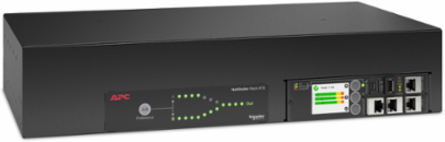

APC AP4453A NetShelter Rack Automatic Transfer Switch, 2U, 30A, 120V, 13.96 lb, 8 ft Cord
- MPN: AP4453A
- UPC: 731304432531
- PPN: APC-AP4453A
CAD
$2902.99
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4453A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4452A is single phase 1U Rack ATS with 20A rated current, 120V rated voltage and 1920VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with 2 NEMA L5-30P inlet and 10 NEMA 5-20R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Voltage | 120 V AC 1 phase |
|---|---|
| Load Capacity | 2880 VA |
| Input Frequency | 50/60 Hz |
| Storage Temperature Range | -13 to 149 °F |
| Storage Humidity Range | 5 to 95% RH |
| Storage Altitude | 0 to 50000 ft |
| Height | 3.46 in (8.8 cm) |
| Depth | 9.29 in (23.6 cm) |
| Cord Length | 8 ft (2.44 m) |
| Number of Power Outlets | 16 |
| Material | Mercury Free, Lead Free |
| Mount Position | Front, rear, horizontal |
| Customs Number | 8537109160 |
| REACH | Contains SVHC above threshold |
| Amperage | 30A |
|---|---|
| Protection Type | Circuit breaker |
| Operating Temperature Range | 23 to 113 °F |
| Operating Humidity Range | 5 to 95% RH |
| Operating Altitude | 0 to 10000 ft |
| Rack Unit Size | 2U |
| Width | 17.01 in (43.2 cm) |
| Weight | 13.96 lb (6.33 kg) |
| Input Connection Type | NEMA L5-30P 24A 2P+E |
| Outlet Type | NEMA 5-20R |
| Color | Black |
| Compliance Standards | RoHS Compliant |
| California Proposition 65 | Prop 65 Warning |
| Warranty | 24 months |
