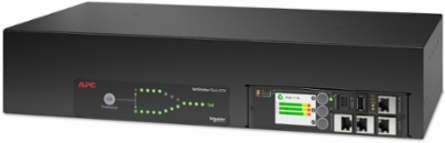

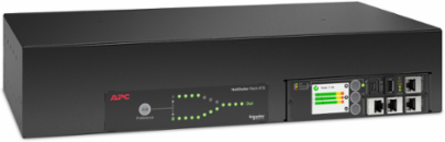

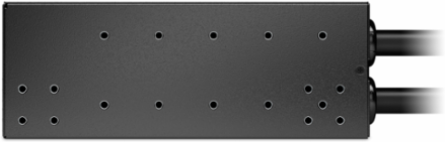

APC AP4424A Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13 OUT
- MPN: AP4424A
- UPC: 731304432456
- PPN: APC-AP4424A
CAD
$3029.85
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Voltage | 230 V AC 1 phase |
|---|---|
| Load Capacity | 7400 VA |
| Rack Units | 2U |
| Width | 17.01 in (43.2 cm) |
| Weight | 15.30 lb (6.94 kg) |
| Cord Length | 8 ft (2.44 m) |
| Mounting Position | Front, Rear, Horizontal |
| Product Certifications | EN 55022 class A, FCC part 15 class A |
| Lead Free | Yes |
| Toxic Heavy Metal Free | Yes |
| REACH | Contains SVHC above threshold |
| Customs Number | 8537109160 |
| Storage Temperature Range | -13-149 °F (-25-65 °C) |
| Storage Humidity Range | 5-95 % |
| Product Orientation | No preference |
| Amperage | 32 A |
|---|---|
| Input Frequency | 50/60 Hz |
| Height | 3.46 in (8.8 cm) |
| Depth | 9.29 in (23.6 cm) |
| Input Connection Type | IEC 60309 32A 2P+E, IEC 60320 |
| Number of Power Socket Outlets | 18 |
| Protection Type | Circuit breaker |
| RoHS | Compliant |
| Mercury Free | Yes |
| WEEE | EU waste collection compliant |
| California Proposition 65 | Prop 65 Warning for DINP |
| Operating Temperature Range | 23-113 °F (-5-45 °C) |
| Operating Humidity Range | 5-95 % |
| Operating Altitude | 0-10000 ft |
