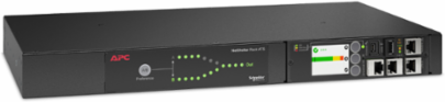

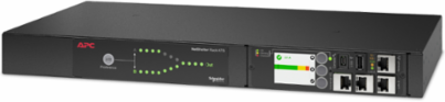

APC AP4422A 1U Rack Automatic Transfer Switch, 16A, 230V, 2 IEC309 IN, 1 IEC309 OUT, 9.28 lb
- MPN: AP4422A
- UPC: 731304432432
- PPN: APC-AP4422A
CAD
$2246.27
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4422A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4422A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3840VA load capacity. It comes with 2 IEC 309 inlet and 1 IEC 309 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Voltage | 230 V AC 1 phase |
|---|---|
| Load Capacity | 3840 VA |
| Rack Unit | 1U |
| Width | 17.01 in (43.2 cm) |
| Weight | 9.28 lb (4.21 kg) |
| Number of IEC309 Inputs | 2 |
| Cable Length | 8 ft (2.44 m) |
| Mounting Location | Front |
| WEEE | EU compliant disposal |
| Mercury Free | Yes |
| RoHS | Compliant |
| Reach | Contains SVHC above threshold |
| Amperage | 16A |
|---|---|
| Input Frequency | 50/60 Hz |
| Height | 1.73 in (4.4 cm) |
| Depth | 9.29 in (23.6 cm) |
| Input Connection Type | IEC 60309 16A 2P+E |
| Number of IEC309 Outputs | 1 |
| Cord Length | 2.99 ft (0.91 m) |
| Mounting Mode | Rack-mounted, Horizontal |
| Customs Number | 8537109160 |
| Compliance | CE, EMC Directive 2004/108/EC, LVD directive 2006/95/EC |
| California Proposition 65 | Contains DINP, cancer warning |
| Lead Free | Yes |
