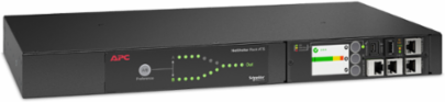

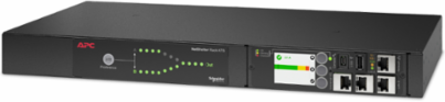

APC AP4433A Netshelter Rack Automatic Transfer Switch, 1U, 12A, 208V AC, IEC C14 IN, C13 OUT
- MPN: AP4433A
- UPC: 731304432494
- PPN: APC-AP4433A
CAD
$2291.04
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4433A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4433A is single phase 1U Rack ATS with 12A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Amperage | 12 A |
|---|---|
| Load Capacity | 3300 VA |
| Dimensions (HxWxD) | 1.73 in x 17.01 in x 9.29 in (4.4 cm x 43.2 cm x 23.6 cm) |
| Mounting Type | Front, rear, horizontal, rack-mounted, horizontal |
| Input Connection Type | IEC 60320 C14 12 A 2P+E |
| Material - Mercury Free | Yes |
| RoHS Compliance | Compliant |
| Operating Temperature Range | 23 to 113 °F (-5 to 45 °C) |
| Operating Humidity Range | 5 to 95 % |
| Operating Altitude | 0 to 10000 ft |
| Input Voltage | 208 V AC 1 phase |
|---|---|
| Operating Frequency | 50/60 Hz |
| Weight | 8.25 lb (3.74 kg) |
| Rack Height | 1U |
| Cable Length | 8 ft (2.44 m) |
| Material - Lead Free | Yes |
| Environmental Compliance - REACH | Contains Substances of Very High Concern above threshold |
| Storage Temperature Range | -13 to 149 °F (-25 to 65 °C) |
| Storage Humidity Range | 5 to 95 % |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
